Product Description

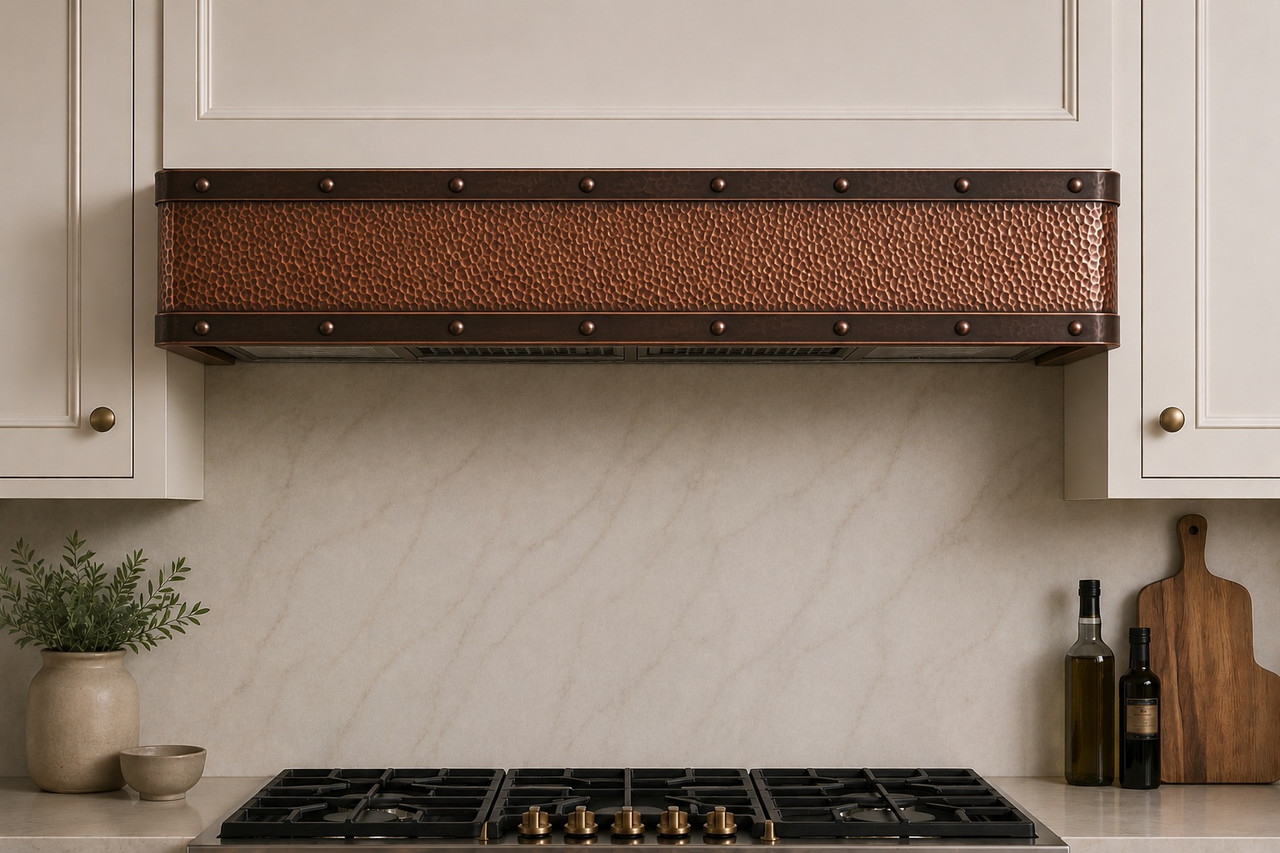

The hammered copper under-cabinet range hood with dark patina bands combines compact dimensions, two-tone artisan metalwork, and insert-ready ventilation preparation. Handcrafted from 16-gauge copper, the rectangular shell measures 10 inches high and 20 inches deep, with widths of 28, 30, 36, 42, 48, 54, 60, 66, 72, or 78 inches. One broad hand-hammered center field is surrounded by dark patina perimeter bands and exposed round rivets, creating a fitted, furniture-like appearance beneath surrounding cabinetry. Unlike models with vertical canopy straps, these bands follow the top, sides, and lower edge without dividing the face into tall panels. Custom dimensions and patina treatments are available after project review. The hood suits Modern Hacienda, farmhouse, industrial rustic, and warm transitional kitchens. Review dimensions, installation planning, and ventilation options in our under-cabinet copper range hood guide. Request a custom quote for this low-profile copper hood today. Request a custom quote for this low-profile copper hood today.
Product Summary
- Product: custom copper hood
- Mount: under-cabinet wall
- Shape: low rectangular box
- Center: broad hammered field
- Bands: dark patina perimeter
- Details: exposed round rivets
- Height: 10 inches
- Depth: 20 inches
- Origin: handmade in Mexico
Under-Cabinet Architecture
This hood uses a compact horizontal body designed to fit beneath a dedicated cabinet or between adjoining wall cabinets. Its 10-inch height avoids the visual mass of a chimney, while the 20-inch projection extends over the cooking surface. The rectangular form preserves more open backsplash area and aligns naturally with surrounding millwork.
Dark Patina Perimeter
Dark patina perimeter bands follow the upper edge, both sides, and lower boundary of the shell. They surround one uninterrupted hammered center field rather than forming vertical canopy straps. This distinction gives the hood a cased, cabinet-grade appearance while separating it from sloped models divided into multiple tall panels.
Exposed Rivet Details
Oversized round rivets appear at measured intervals along the perimeter bands. Their repeated spacing adds rhythm and references traditional forged-metal construction. The fasteners remain intentionally visible, giving the low rectangular body handcrafted character without medallions, embossed artwork, scrollwork, or other applied decorative motifs.
Compact Ventilation Housing
The decorative shell conceals an approved insert, filters, controls, and lighting from normal viewing height. Access remains available from below for routine cleaning and maintenance. Because the shell is only 10 inches high, the physical dimensions of the selected insert are as important as its stated airflow capacity.
Custom Hood Options
Standard production uses a 10-inch height and 20-inch front-to-back depth with ten available widths. Custom dimensions may be reviewed when cabinet construction, range size, or ventilation equipment requires another configuration. Buyers may also customize the patina contrast, perimeter-band width, rivet spacing, and visible copper treatment before production.
Measurements to Send
Provide the cabinet opening width, range width, available mounting height, required 20-inch projection, cabinet-floor thickness, backsplash thickness, insert manufacturer and model, insert cutout dimensions, duct diameter and direction, and planned electrical or control locations. Complete measurements allow the cabinet, shell, insert opening, and duct route to be coordinated before production.
Insert Planning
This handcrafted copper body is an insert-ready decorative shell rather than a universal ventilation appliance. Rustica House may supply an optional 200 CFM insert or prepare the interior for approved buyer-provided equipment. The insert body, controls, lights, filters, cutout, and service requirements must physically fit within the 10-inch shell.
Cabinet Support
The cabinet structure, wall blocking, and attachment points must support the copper shell and ventilation equipment. Confirm the cabinet floor thickness, available interior space, neighboring door clearances, and mounting height. Structural preparation should be coordinated with the cabinetmaker and installer before the final dimensions are approved.
Duct Routing
Ductwork may travel vertically through the cabinet above or horizontally through the rear wall, depending on the approved equipment. Confirm the duct diameter, discharge direction, transitions, blower location, electrical service, and access requirements. A qualified installer should verify framing, appliance instructions, and applicable local codes.
Buyer Planning Table
| Planning | What to Confirm | Why It Matters |
| Hood width | Range and cabinet width | Sets alignment and coverage |
| Hood height | Standard 10 inches | Preserves the low profile |
| Hood depth | Standard 20 inches | Controls front projection |
| Cabinet floor | Thickness and reinforcement | Supports shell and insert |
| Band layout | Perimeter width and spacing | Frames the center field |
| Rivet pattern | Size and alignment | Maintains visual rhythm |
| Ventilation | Insert and duct details | Confirms physical fit |
| Patina choice | Center and band tones | Sets two-tone contrast |
Product Specifications
- Type: custom copper range hood
- Mount: under-cabinet wall
- Profile: low horizontal box
- Body: rectangular copper shell
- Center: broad hammered field
- Bands: dark patina copper
- Fasteners: exposed round rivets
- Material: 16-gauge copper
- Copper: recycled solid sheet
- Height: 10 inches
- Depth: 20 inches
- Widths: 28, 30, 36, 42, 48
- More widths: 54, 60, 66, 72, 78
- Custom sizes: available
- Custom patina: available
- Vertical straps: none
- Ventilation: insert-ready shell
- Supplied insert: optional 200 CFM
- Buyer insert: 1,260 CFM, fit reviewed
- External blower: 1,500 CFM, reviewed
- Duct route: vertical or rear
- Shell warranty: 12 months
- Insert parts: 12 months
- Lead time: about 8 weeks
- Delivery: free delivery included
- Care: mild soap and soft cloth
- Production: made to order
- Origin: Santa Clara del Cobre
- Country: handcrafted in Mexico
- SKU: HN19P7F81
Two-Tone Copper Construction
The design relies on the contrast between one warm hammered center field and the dark patina perimeter bands surrounding it. Straight outer lines organize the compact rectangular shell, while visible rivets add measured handcrafted detail. This approach creates depth without dividing the face with vertical straps or adding sculptural ornament.
Mexican Copper Heritage
The hood is handcrafted in Santa Clara del Cobre, Michoacán, using regional copper cutting, forming, hammering, joining, and patina methods. Each shell is produced around approved cabinet and insert specifications. Minor differences in hammer marks, seams, rivet spacing, and patina tone remain natural characteristics of artisan production.
Best Kitchen Styles
This low-profile hood complements Modern Hacienda, contemporary farmhouse, Mediterranean, industrial rustic, and warm transitional interiors. Pair it with white or mushroom cabinetry, white oak, walnut, plaster, marble, quartzite, handmade tile, Cantera stone, or concrete. Brass hardware supports the warm center, while black iron and dark fixtures coordinate with the perimeter bands. See how this handcrafted hood enhances farmhouse, Mediterranean, and Spanish Colonial kitchens in our hammered copper under-cabinet hood with dark bands lifestyle guide.
FAQ - Cabinet Copper Hood
A: The hood combines a 10-inch-high body, 20-inch depth, one broad hammered center field, dark patina perimeter bands, and exposed rivets. The bands frame the complete rectangular face instead of dividing it with vertical straps, helping distinguish the design from taller sloped under-cabinet models.
A: The rectangular shell measures 10 inches high and 20 inches deep. Width options are 28, 30, 36, 42, 48, 54, 60, 66, 72, and 78 inches. Custom dimensions may also be reviewed before production.
A: No. The dark patina perimeter bands are made from copper and treated to create a deeper contrasting tone. This preserves a consistent copper construction while giving the hammered center field a clearly framed, furniture-like appearance.
A: No. It fits beneath or between wall cabinets rather than extending toward the ceiling. The insert and duct transition remain concealed within the decorative shell, cabinet, rear wall, or soffit according to the approved installation plan.
A: Yes. Custom measurements may be reviewed when cabinetry, cooking equipment, or ventilation requirements call for another configuration. Custom patina treatments can also adjust the contrast between the hammered center field and the darker perimeter bands.
A: Approved equipment may be supported within the stated airflow limits, but the insert body, controls, lights, filters, and cutout must fit the 10-inch shell. Submit the complete manufacturer specification sheet before production. Buyer inserts up to 1,260 CFM and external blowers up to 1,500 CFM require review.
A: The cabinet floor, wall blocking, and attachment points must support the copper shell and ventilation equipment. The cabinetmaker and installer should confirm the structure, insert position, duct route, and service access before the final dimensions are approved.
A: Use mild soap, water, and a soft cloth for routine care. Avoid abrasive pads, acidic cleaners, strong degreasers, and unapproved metal polish. Dry the center field, perimeter bands, rivets, seams, and corners carefully after cleaning.
Customize Your Hood
Plan this hammered copper under-cabinet range hood around the cabinet opening, range width, insert model, duct route, and support structure. Choose a standard width or request custom dimensions, then confirm the dark patina perimeter bands, rivet spacing, and patina treatment. Request a custom quote from Rustica House today.
Related Resources
- custom copper range hoods
- under-cabinet hood guide
- range hood insert guide
- copper hood size guide
- copper patina options
- copper hood care guide
Shipping, Returns & Warranty
Review insured freight delivery, inspection, custom-order terms, and warranty coverage before production. Visit shipping and returns and the Rustica House warranty page for current procedures, exclusions, and buyer responsibilities.
Disclaimer: Handmade dimensions, hammer marks, perimeter-band widths, rivet spacing, seams, corners, and patina tones may vary slightly. These artisan differences are expected and are not manufacturing defects. Lifestyle images are provided for inspiration only and may show optional features. Product images may not be reproduced without written permission from Rustica House.
