Product Description
This made-to-order under-cabinet hammered copper range hood with curved front is handcrafted in Santa Clara del Cobre, Michoacán from substantial 16-gauge copper. The front remains broad and symmetrical, while the panel curves outward in side profile before meeting a deep riveted lower apron. Hand-hammered texture gives the copper natural depth, and raised trim outlines the cabinet-ready top, curved body, side panels, and apron. Choose widths from 28 to 78 inches, multiple heights, six copper finishes, custom proportions, and preparation for an optional or buyer-supplied insert. A smooth copper surface is also available by request. Free shipping is included, and typical production takes about eight weeks. Learn more in our under-cabinet copper hood with curved front guide. Customize this curved-front copper hood for your kitchen today.
Product Summary
- Product: under-cabinet copper range hood
- Front: broad symmetrical curved panel
- Profile: convex curve visible from side
- Material: substantial 16-gauge copper
- Surface: standard hand-hammered texture
- Smooth option: available by request
- Apron: deep band with copper rivets
- Trim: raised edging around the body
- Mount: beneath upper wall cabinets
- Widths: available from 28 to 78 inches
- Heights: available from 24 to 72 inches
- Finishes: six standard copper options
- Ventilation: shell or custom insert prep
- Lead time: approximately eight weeks
- Delivery: free shipping is included

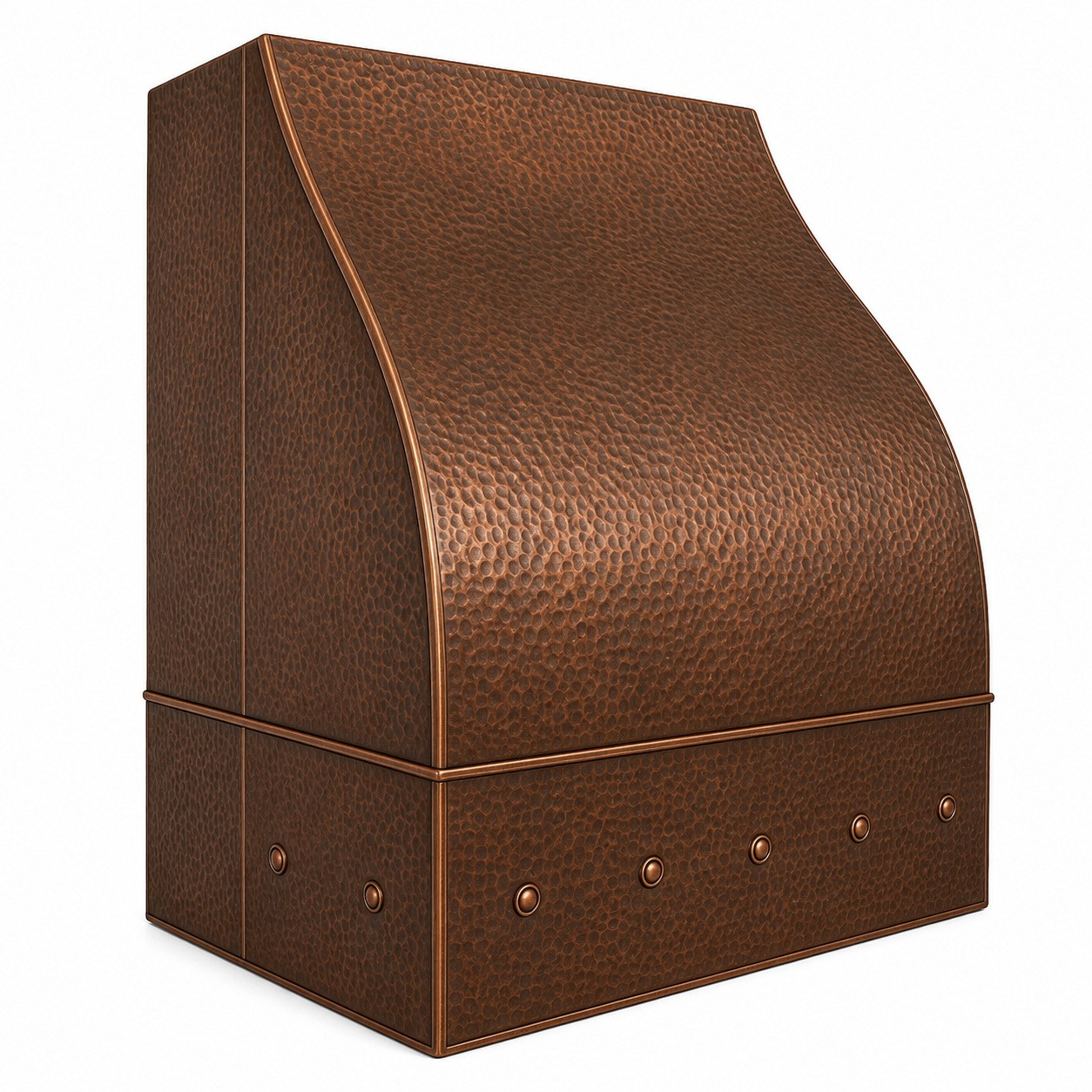

Curved Hood Design
The defining feature is the hammered front panel, which projects outward through a smooth convex curve before meeting the broad lower apron. This rounded transition is most evident from the side and differs from the single diagonal line found on a conventional sloping hood. From the front, curved side contours narrow toward the cabinet-ready upper section while the lower body remains wide above the cooking surface. The sculpted silhouette, warm copper finish, raised trim, and restrained rivet line complement Spanish Colonial, Hacienda, Mediterranean, and transitional kitchens without requiring floral motifs or elaborate applied ornament.

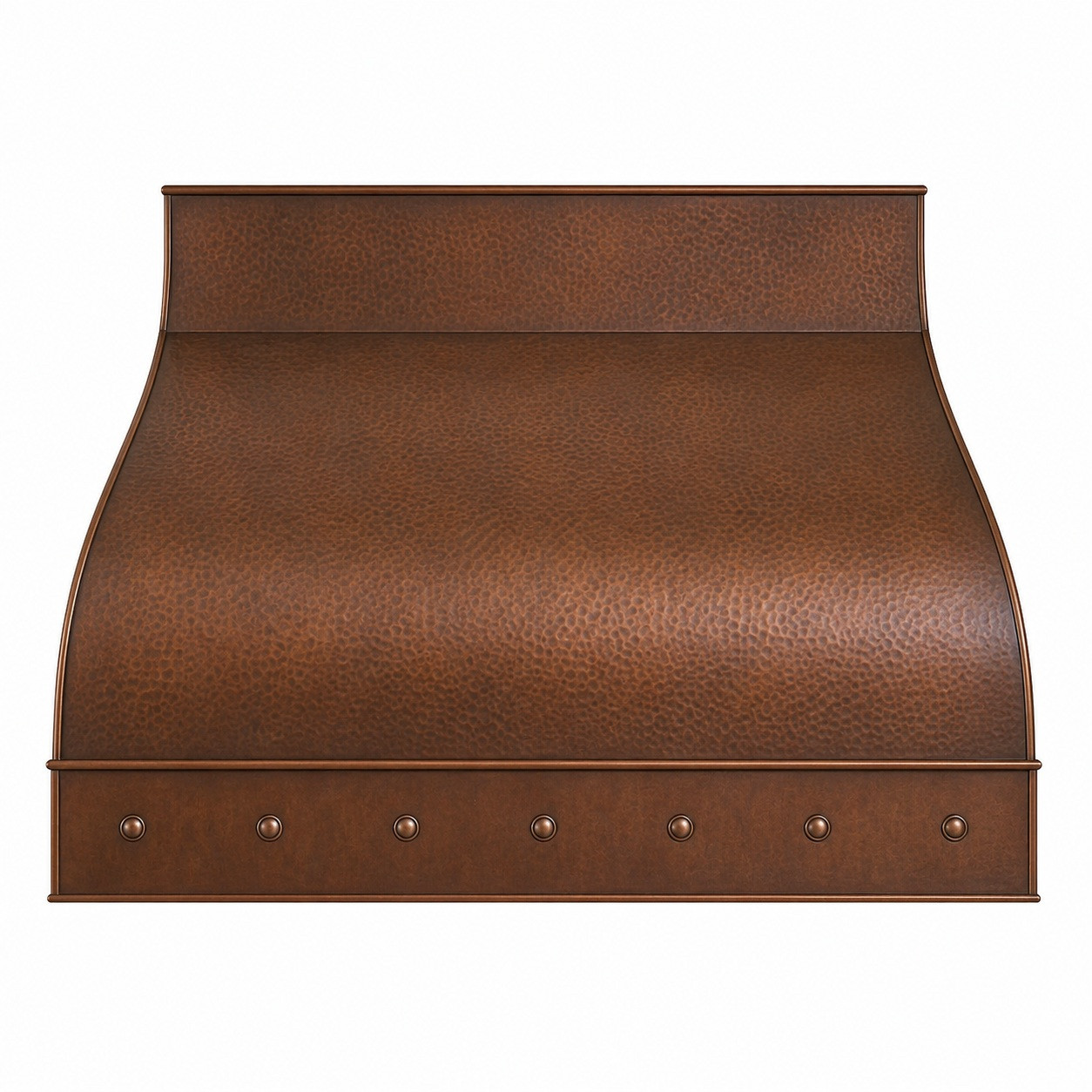

Front and Side Profile
From the front, the hood presents a wide symmetrical face framed by side contours that curve inward toward the short rectangular top. The hammered center panel retains substantial visual width above the cooking area. From the side, the front surface sweeps outward gradually and becomes nearly vertical before meeting the apron. This geometry classifies the model as a curved-front under-cabinet hood rather than a bell, box, tapered, or straight-sloping design.
Hammered Copper Surface
The main body, side panels, cabinet-ready top, and lower apron are formed with a hand-hammered surface. Small irregular impressions reflect light differently across the curved panel and give the copper greater visual depth than a completely flat finish. Hammering is the standard texture named in the product title. Buyers who prefer a cleaner appearance can request smooth copper as an alternative. Slight differences in hammering depth, spacing, and pattern are expected because each hood is shaped and finished by hand.
Riveted Lower Apron
A deep rectangular apron anchors the curved body and forms a strong horizontal base above the cooking surface. Evenly spaced round copper rivets add traditional metalworking detail without dividing the large hammered front panel. Raised copper edging outlines the upper and lower apron boundaries and visually connects them with the trim surrounding the curved body, short upper section, and finished side panels.
Under-Cabinet Installation
This model is designed for wall installation beneath upper cabinetry or within a built-in cooking wall. The short rectangular top connects to the cabinet structure, while the finished front and side panels remain visible below. Unlike a standard wall-mount hood, this model does not require a tall decorative chimney. Cabinet width, mounting height, backsplash thickness, hood projection, filter access, and ventilation dimensions must be confirmed before fabrication.
Custom Hood Options
- Widths: 28 to 78 inches available
- Heights: 24 to 72 inches available
- Standard texture: hand-hammered copper
- Smooth surface: available by request
- Finishes: six standard copper options
- Mount: under-cabinet wall installation
- Ventilation: shell or approved insert prep
- Custom sizing: reviewed before production
Standard finish options include coffee, antique, natural, honey, green patina, and polished copper. Additional patina requests can be reviewed. Green patina is a complete finish option, while localized oxidized accent treatments are available with natural patina only. Final copper tone and surface character vary because every hood is formed, hammered, finished, and assembled by hand.
Required Measurements
Provide the cooking-range width, cabinet opening width, cabinet depth, available height below the cabinetry, desired hood width, desired projection, cooking-surface clearance, and backsplash thickness. For ventilation preparation, also provide the insert manufacturer, model number, liner dimensions, cutout size, duct location, electrical requirements, filter-access needs, and any cabinet restrictions.

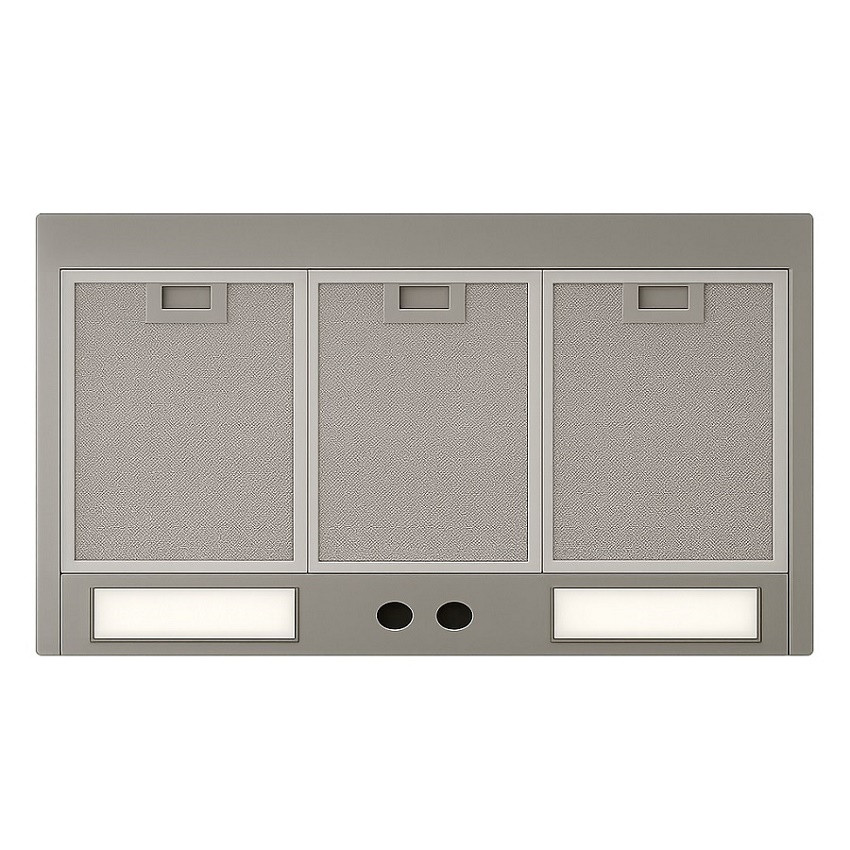

Ventilation Insert Planning
This handcrafted copper product is a decorative hood shell prepared around the ventilation equipment selected for the project. Buyers may order the shell without ventilation equipment, request preparation for an approved buyer-supplied insert, select the optional Rustica House 200 CFM insert for compatible widths from 28 to 42 inches, or choose the compatible 200 CFM recirculating option for installations without exterior ducting.
Buyer-Supplied Insert Details
When using another manufacturer’s insert or liner, send the complete model information before production. The cutout, internal clearances, mounting points, duct position, lighting access, controls, and filter-removal space must be approved before fabrication. Do not select an insert based only on the advertised hood width because equipment dimensions differ between manufacturers and models.
Ventilation Power Guidance
The optional 200 CFM insert is intended for lighter residential cooking and smaller compatible hood sizes. Higher-output ranges, gas appliances, wide cooktops, long duct runs, and frequent high-heat cooking may require a more powerful buyer-supplied insert or remote blower. Ventilation capacity should reflect the cooking appliance, duct configuration, local code, and applicable makeup-air requirements.
Cabinet Clearance Planning
Confirm the appliance manufacturer’s required clearance between the cooking surface and combustible cabinetry. Hood height, apron depth, insert dimensions, and cabinet opening must work together without restricting filter removal, controls, lighting, duct connections, electrical access, or future equipment servicing.
Buyer Planning Table
| Planning | What to Confirm | Why It Matters |
| Hood width | range and cabinet opening | supports capture and symmetry |
| Cabinet height | available space above range | determines hood proportions |
| Hood depth | desired cooking coverage | affects capture and projection |
| Curved front | height and front projection | controls the curved profile |
| Lower apron | apron height and rivet layout | sets visual weight |
| Insert model | cutout and access details | ensures correct preparation |
| Copper finish | patina and texture choice | controls final appearance |
Range Hood Specifications
- Product: under-cabinet copper range hood
- Primary shape: curved-front body
- Front view: broad symmetrical curved panel
- Side profile: smooth convex projection
- Apron: deep lower band with copper rivets
- Trim: raised copper edge detailing
- Material: substantial 16-gauge copper
- Texture: standard hand-hammered surface
- Smooth option: available by request
- Finish count: six standard options
- Mount: below upper wall cabinetry
- Width: 28 to 78 inches
- Height: 24 to 72 inches
- Depth: made to project requirements
- Custom sizing: available by request
- Insert: optional 200 CFM system
- Recirculation: optional 200 CFM system
- Own insert: custom preparation available
- Origin: Santa Clara del Cobre
- Country: handcrafted in Mexico
- Availability: made to order
- Lead time: approximately eight weeks
- Delivery: free shipping included
- Warranty: 12-month hood shell coverage
- Care: mild soap, water & soft cloth
Copper Finish Care
Six standard finish options include coffee, antique, natural, honey, green patina, and polished copper. Green patina covers the hood as a complete finish, while localized oxidized accents can be requested with natural patina only. Patina color, tonal depth, hammering, rivet placement, seams, and edge details may vary slightly from photographs. A transparent protective coating may be applied to slow natural color change, but gradual variation can still occur through heat, moisture, ultraviolet exposure, wear, or coating damage. Clean the hood with mild soap, water, and a soft cloth. Avoid acids, abrasive pads, copper polish, harsh degreasers, and scrubbing compounds.
Range Hood FAQ
It combines a broad symmetrical front, a convex curved panel visible from the side, hand-hammered 16-gauge copper, raised edge trim, a deep riveted apron, and cabinet-ready construction.
Its primary shape is curved. The side profile follows a continuous rounded front panel rather than the single straight diagonal line used on a conventional sloping hood.
No. This model is designed for wall installation beneath upper cabinetry or within a built-in cooking wall.
Yes. It can be ordered as a decorative hood shell or prepared for an approved buyer-supplied insert or liner.
Rustica House offers an optional 200 CFM insert and a 200 CFM recirculating insert for compatible hood widths from 28 to 42 inches.
Yes. Standard width and height options are available, and custom proportions can be reviewed after the cabinet, range, clearance, and ventilation details are provided.
Coffee, antique, natural, honey, green patina, and polished copper finishes are offered. Additional patina requests can also be reviewed.
Yes. Hand-hammered copper is the standard surface, but smooth copper can be requested as an alternative.
Yes. Hammering, copper tone, patina depth, rivet placement, seams, and edge details vary slightly because every hood is made and finished by hand.
Use mild soap, water, and a soft cloth. Do not use acidic cleaners, abrasive pads, metal polish, copper cleaner, or harsh degreasers.
Customize Your Hood
Order an under-cabinet hammered copper range hood with a curved front tailored to your cabinet opening, range width, preferred projection, copper finish, and ventilation equipment. Select the standard hand-hammered surface or request smooth copper. Confirm all dimensions and insert specifications before production so the curved body, riveted apron, mounting points, and internal preparation can be fabricated for the project.
Related Resources
- curved-front hood lifestyle images
- curved-front copper hood guide
- curved copper range hoods
- range hood insert planning guide
- copper patina finish options
Shipping & Return Details
This made-to-order copper hood includes free shipping and normally requires about eight weeks for production. Review freight procedures, inspection requirements, and return conditions on the shipping and returns page before ordering.
Warranty Coverage
The handcrafted copper hood shell includes a 12-month warranty. Rustica House insert components and buyer-supplied ventilation equipment are covered according to their applicable warranty terms. Review the Rustica House warranty before ordering.
Disclaimer: Handmade dimensions, curved-front proportions, hammering depth, copper tone, patina color, rivet placement, apron height, seam placement, trim alignment, protective-coating appearance, and edge details may vary slightly. These artisan variations are part of the handcrafted character and are not defects. Buyers must verify cabinet clearance, ventilation, appliance, and installation requirements before production. Lifestyle images are for inspiration only. Product images are copyrighted by Rustica House.
