Copper Bell Range Hood with Polished Zinc Straps

Overview

Product Description

The copper bell range hood with polished zinc straps combines a sculpted campana profile with an orderly mixed-metal framework. Formed from 16-gauge copper, the canopy begins with controlled upper shoulders before expanding through a compound curve into a broad rounded flare. Five smooth zinc ribs follow the front contour and divide the hammered surface into six elongated copper fields, while both side elevations remain uninterrupted. The shown natural patina emphasizes reddish copper with restrained blue-green aging around seams, corners, and the lower edge. A rectangular chimney rises above the canopy without elaborate molding, and the curved body terminates in a clean apronless line. Custom widths from 28 to 78 inches and heights from 24 to 72 inches are available for wall-mounted or island configurations. Discover how the bell-shaped copper canopy and polished zinc detailing define this mixed-metal design in our copper range hood design guide. Request a custom quote for this architectural mixed-metal hood today.

Copper Bell Hood Summary

This custom copper bell range hood pairs a hand-formed 16-gauge copper canopy with five polished zinc straps that function as architectural ribs. The compound campana flare, six vertical copper fields, uninterrupted side panels, rectangular chimney, and apronless lower edge create a distinctive mixed-metal profile for wall-mounted or island kitchens.

Design: compound copper bell canopy
Straps: five polished zinc straps
Front: six vertical copper fields
Sides: uninterrupted copper panels
Sizes: 28–78 inches wide
Heights: 24–72 inches
Mounting: wall or island
Planning: PDF and DXF files

Ventilation compatibility: Rustica House can supply an optional 200 CFM insert. The insert-ready shell may also be prepared for buyer-supplied internal inserts up to 1,260 CFM or external blowers up to 1,500 CFM when complete specifications are approved before production.

Why This Hood Is Different

The five polished zinc straps give this copper bell hood a more specific identity than models built around interchangeable aprons, rivet packages, or horizontal trim. Used as architectural ribs, the straps divide the front into six elongated copper fields and emphasize the canopy height. Unbanded side panels preserve the complete bell curve, creating a tailored mixed-metal composition without reducing the warmth of the hand-finished copper.

Compare Zinc-Strap Hoods

Choose this apronless copper bell range hood for a compound curved canopy, five polished zinc straps, clean side elevations, and a straight lower termination. The trapezoidal copper hood with zinc bands uses two vertical straps, one horizontal zinc accent, darker coffee patina, and a riveted lower apron. The two products therefore serve different architectural preferences rather than duplicating the same design.

Copper Bell Profile

The primary shape is a true copper bell or campana rather than a straight trapezoid. A shallow concave sweep begins beneath the chimney and develops into a fuller convex flare near the cooking surface. This compound movement concentrates visual volume in the lower canopy while keeping the upper shoulders controlled and the rectangular chimney proportionate.

Front Elevation

From the front, both sides expand symmetrically from the narrower neck toward the broad base. Five polished zinc straps act as vertical architectural ribs and divide the surface into six evenly paced copper fields. Their measured spacing brings order to the rounded canopy and makes the lower flare appear structured rather than visually oversized.

Side Profile

The back remains substantially vertical for wall installation, while the front projects through the developed bell curve. This relationship creates depth without requiring side trim. From an angle, the full front sweep, quiet copper return, squared chimney, and clean lower edge remain clearly visible.

Rectangular Chimney

The chimney rises as a straightforward copper block with vertical sides and a squared upper edge. Its width is substantial enough to feel connected to the canopy but narrow enough to preserve the bell proportions below. The restrained top keeps the composition architectural and directs attention toward the shaped copper body.

Apronless Base

The canopy reaches a straight lower edge without transitioning into a separate apron. This direct termination allows the compound curve to remain continuous from the upper shoulder to the base. It also creates a lighter foundation than bell hoods built around deep boxed aprons, projecting rails, or horizontal framing.

Polished Zinc Straps

Five polished zinc straps are shaped individually to follow the changing front contour. These straps function as architectural ribs, connecting the narrower upper section with the broad lower flare and regulating the scale of the six copper panels. Their cool silver-gray tone creates a natural visual bridge to stainless appliances, nickel hardware, and industrial lighting.

Quiet Sides

The zinc framework is limited to the front elevation. Both side panels remain entirely copper, giving profile and angled views a calmer appearance. This contrast between the structured front and unbroken sides makes the hood feel intentional from every direction without repeating the same decorative treatment across the complete enclosure.

Surface Finish

The pictured canopy combines closely spaced hand hammering with a warm natural copper treatment. Small turquoise and blue-green accents collect selectively around seams, corners, lower edges, and individual depressions. The polished zinc remains smooth and cool-toned, producing a clear contrast with the tactile reddish copper without making the hood appear uniformly oxidized.

Customization Options

This custom copper bell range hood may be ordered with a smooth or hammered surface in coffee, antique, natural, honey, oxidized-green, or hand-polished treatments. Bell curvature, chimney proportions, polished zinc strap width, rib spacing, finish intensity, and overall dimensions may be reviewed before production while preserving the model’s distinctive five-strap front arrangement.

Sizing and Measurements

Provide the cooking-surface width, selected hood width, available height, ceiling height, backsplash thickness, surrounding cabinetry, finished mounting position, and required projection. Include nearby shelves, beams, windows, stone surrounds, or trim that could affect placement, service access, structural support, or visibility of the curved side profiles. Accurate measurements also help coordinate chimney proportions and polished zinc strap spacing.

Ventilation and Insert Planning

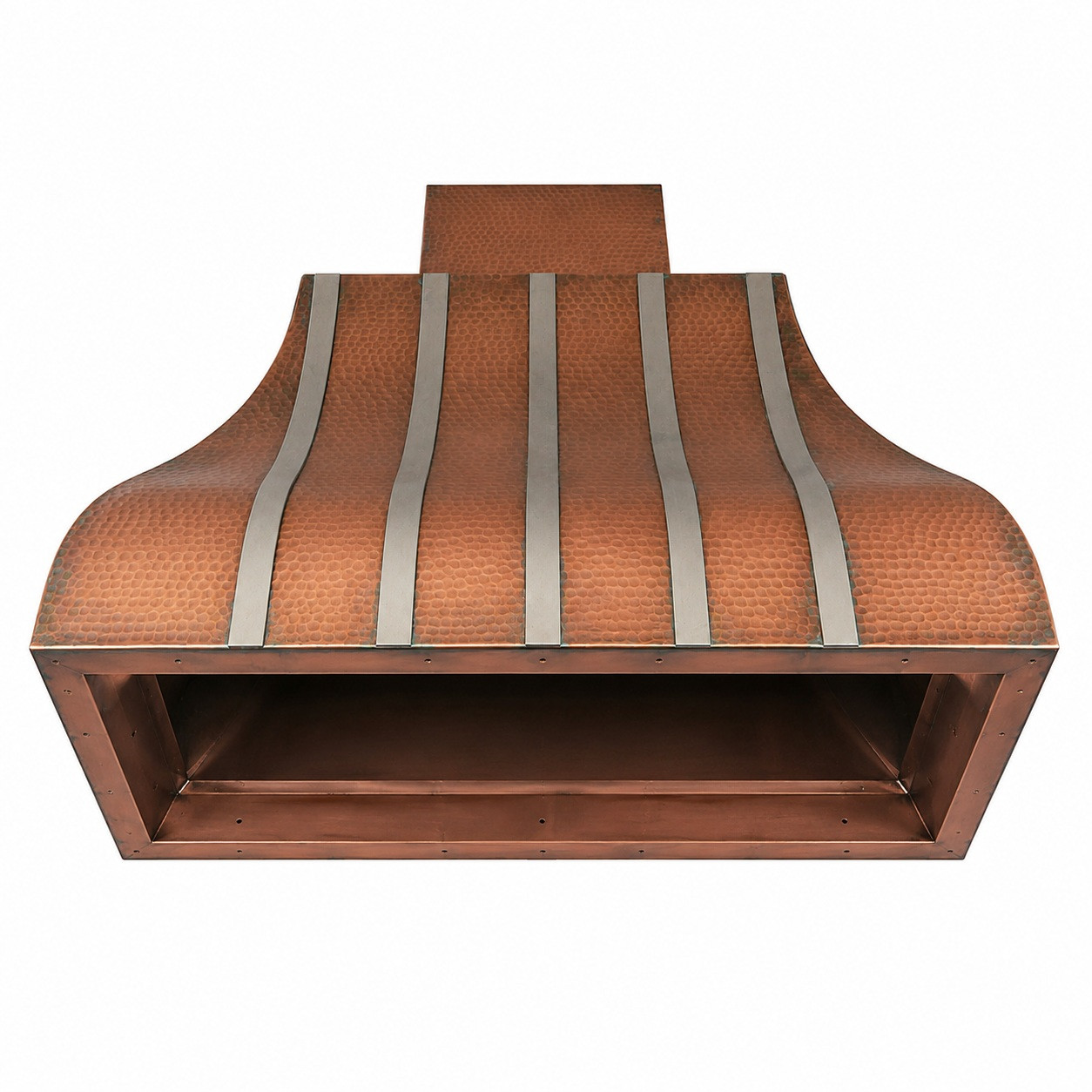

The handcrafted enclosure is prepared as an insert-ready shell. Rustica House can supply an optional 200 CFM insert, but this option does not represent the maximum capacity of the hood shell. Buyer-supplied internal inserts up to 1,260 CFM and external blower systems up to 1,500 CFM may be supported when complete dimensions, technical specifications, duct requirements, and service clearances are approved before production.

Preproduction Approval

Review and approve the exterior dimensions, bell curvature, rectangular chimney, polished zinc strap layout, ventilation equipment, and installation conditions as one coordinated design. A change to one component may affect the internal liner area, chimney size, strap spacing, front projection, duct position, service access, or structural support.

Planning	Confirm	Purpose
Hood width	Range and wall area	Sets scale and coverage
Total height	Ceiling and clearances	Balances the silhouette
Bell curve	Shoulder and flare depth	Defines the campana form
Zinc straps	Width and spacing	Maintains front rhythm
Copper finish	Texture and patina	Sets color and reflection
Ventilation	Insert, blower, and duct	Guides preparation
Mounting	Wall or ceiling support	Supports installation

Copper Hood Specifications

These specifications summarize the copper bell architecture, polished zinc strap arrangement, materials, sizing, finish choices, ventilation preparation, planning resources, production schedule, care requirements, and confirmed product identification.

Type: custom copper range hood
Shape: compound bell canopy
Chimney: rectangular copper
Front: six copper fields
Straps: five polished zinc straps
Sides: unbanded copper
Apron: none
Crown: none
Rivets: none visible
Material: 16-gauge copper
Accents: architectural zinc ribs
Texture: smooth or hammered
Finishes: six treatments
Widths: 28 to 78 inches
Height: 24 to 72 inches
Depth: 24 inches standard
Mount: wall or island
Ventilation: insert-ready shell
Insert option: Rustica House 200 CFM
Buyer insert: up to 1,260 CFM
External blower: up to 1,500 CFM
Planning files: PDF and DXF drawings
Approval: dimensions and insert preparation
Lead time: about 8 weeks
Delivery: free delivery included
Warranty: 12 months
Care: mild soap and cloth
Origin: Santa Clara del Cobre
Country: handcrafted in Mexico
SKU: QO50J2G71

PDF and CAD Downloads

Use the proportional PDF drawing and DXF CAD file to review the copper bell profile, rectangular chimney geometry, front-only polished zinc strap placement, and overall dimensional relationships. These planning resources support coordination among homeowners, designers, cabinetmakers, ventilation specialists, fabricators, and installers before final production measurements are approved.

Copper Craftsmanship

Artisans form the chimney, front canopy, compound side curves, underside structure, and lower edge around the approved measurements. Each polished zinc strap is shaped individually to follow the changing front contour before all five architectural ribs are aligned across the six copper fields. The surface is then hammered or smoothed, finished by hand, prepared for the approved insert, inspected, and packed for insured freight delivery.

Artisan Testimony

The balanced campana curve, individually formed polished zinc straps, controlled surface treatment, and restrained lower edge reflect the metalworking traditions of Michoacán. Learn more about copper artisan Juan Carlos Hernández and the regional methods used to form, hammer, join, and finish architectural copperwork.

Natural Variation

Bell curvature, polished zinc strap alignment, copper texture, edge transitions, seams, patina tones, zinc reflections, and selective oxidation may vary slightly between completed hoods. These differences document manual forming and hand finishing. They contribute to the individual character of each enclosure and are not manufacturing defects.

Kitchen Styles

The copper bell silhouette and warm-cool metal contrast work best in kitchens that combine substantial natural materials with restrained architectural detailing. See how the copper canopy and polished zinc straps create a distinctive kitchen focal point across different interiors in our copper range hood kitchen gallery.

Modern Hacienda: Warm plaster walls, natural oak cabinetry, handmade tile, limestone, and dark iron lighting create an ideal setting. Copper contributes traditional material warmth, while the polished zinc straps introduce cleaner definition and prevent the broad bell canopy from appearing excessively rustic or historically ornate.
Arts and Crafts: Quarter-sawn oak, inset cabinetry, muted green tile, stone counters, and simple metal hardware support the visible construction and handcrafted texture. The repeated zinc divisions resemble architectural joinery, while the uninterrupted copper sides preserve the style’s preference for honest materials and disciplined ornament.
Industrial Transitional: Polished zinc connects the hood with stainless appliances, brushed-nickel hardware, gray stone, and industrial lighting. The rounded copper flare softens Shaker cabinetry and rectilinear architecture, keeping the kitchen from feeling overly mechanical while maintaining a tailored mixed-metal composition.
Belgian Farmhouse: Limewashed walls, pale oak, aged stone, restrained cabinetry, and muted textiles provide a quiet background for the warm copper and cool zinc. The straightforward chimney and apronless base suit the style’s preference for substantial forms without excessive molding or decorative relief.

Additional Styles

Spanish Colonial Revival
Mediterranean contemporary
Rustic loft

Bell Copper Hood FAQ

These answers address the compound bell shape, five-rib framework, finish choices, custom sizing, ventilation compatibility, and care requirements to review before production.

Q: What makes this copper hood unique?

A: It combines a compound bell canopy, five polished front ribs, six copper fields, uninterrupted side elevations, a restrained rectangular chimney, and an apronless lower edge.

Q: Is the canopy a simple trapezoid?

A: No. Its sides develop through a compound curve, beginning with controlled concave shoulders before expanding into a fuller rounded flare near the cooking surface.

Q: Are zinc straps installed on the sides?

A: No. All five polished zinc ribs are positioned on the front. The side panels remain entirely copper to preserve quiet profile and angled views.

Q: Is the shown hood fully oxidized?

A: No. Warm reddish copper remains dominant. Small blue-green accents appear selectively around seams, corners, lower edges, and selected hammer impressions.

Q: Can the texture and finish change?

A: Yes. The copper may be smooth or hammered and ordered in coffee, antique, natural, honey, oxidized-green, or hand-polished treatments. The zinc ribs retain their cool polished appearance.

Q: Can it fit my insert?

A: Provide the manufacturer, model, body dimensions, liner cutout, filters, lighting, controls, duct size, discharge position, electrical requirements, and service clearances for compatibility review.

Customize This Hood

Plan this copper bell range hood with polished zinc straps around the cooking-surface width, available height, cabinetry, backsplash, structural support, and approved ventilation equipment. Confirm the campana curve, chimney proportions, strap width and spacing, texture, patina, oxidation placement, insert preparation, and final dimensions before production. Request a custom quote from Rustica House today.

Related Resources

Installation Guide

Coordinate structural blocking, mounting height, duct routing, electrical service, liner access, and wall or ceiling support before fabrication. Review the range hood installation guide with the installer and cabinetmaker before approving final dimensions.

Shipping & Returns

This made-to-order hood ships by insured freight after production. Review delivery inspection, damage-reporting procedures, custom-order limitations, and return eligibility on the shipping and returns page before approving the dimensions, finish, and ventilation preparation.

Warranty

The handcrafted copper shell and replacement components for a Rustica House-supplied insert include 12-month coverage. Review current exclusions, maintenance responsibilities, limitations, and claim procedures on the Rustica House warranty page.

Disclaimer: Handmade dimensions, campana curves, strap spacing, seams, hammer impressions, zinc reflections, copper tones, and oxidation patterns may vary slightly. These differences are expected and are not manufacturing defects. Lifestyle images are provided for inspiration only and may show optional features. Product images may not be reproduced without written permission from Rustica House.
