Product Description
This natural zinc range hood with a riveted three-panel grid combines a straight chimney, sharply flared canopy, framed side panels, and exposed same-metal fasteners in a made-to-order wall or island design. Available from 28 to 78 inches wide and 24 to 72 inches high, with a standard 24-inch depth, it can be proportioned for cabinetry and approved ventilation equipment. The featured finish is smooth natural zinc with a cool silver-gray tone and restrained sheen. Dark zinc, hammered texture, and hand-polished smooth or hammered surfaces are also available. Unlike curved French, bell, dome, or mixed-metal hoods, this model uses straight planes and a monochromatic framework to create a refined modern-industrial focal point. Evaluate the tapered canopy, three-panel composition, exposed fasteners, and ventilation compatibility in our riveted three-bay panel zinc range hood guide. Share your cooktop width, ceiling height, mounting configuration, finish choice, and insert specifications for a tailored quote.
Product Summary
- Profile: Angular flared canopy
- Body: Natural zinc shown
- Front: Three framed panels
- Details: Zinc straps and rivets
- Finishes: Natural, dark, or polished
- Mounting: Wall or island
Insert Planning

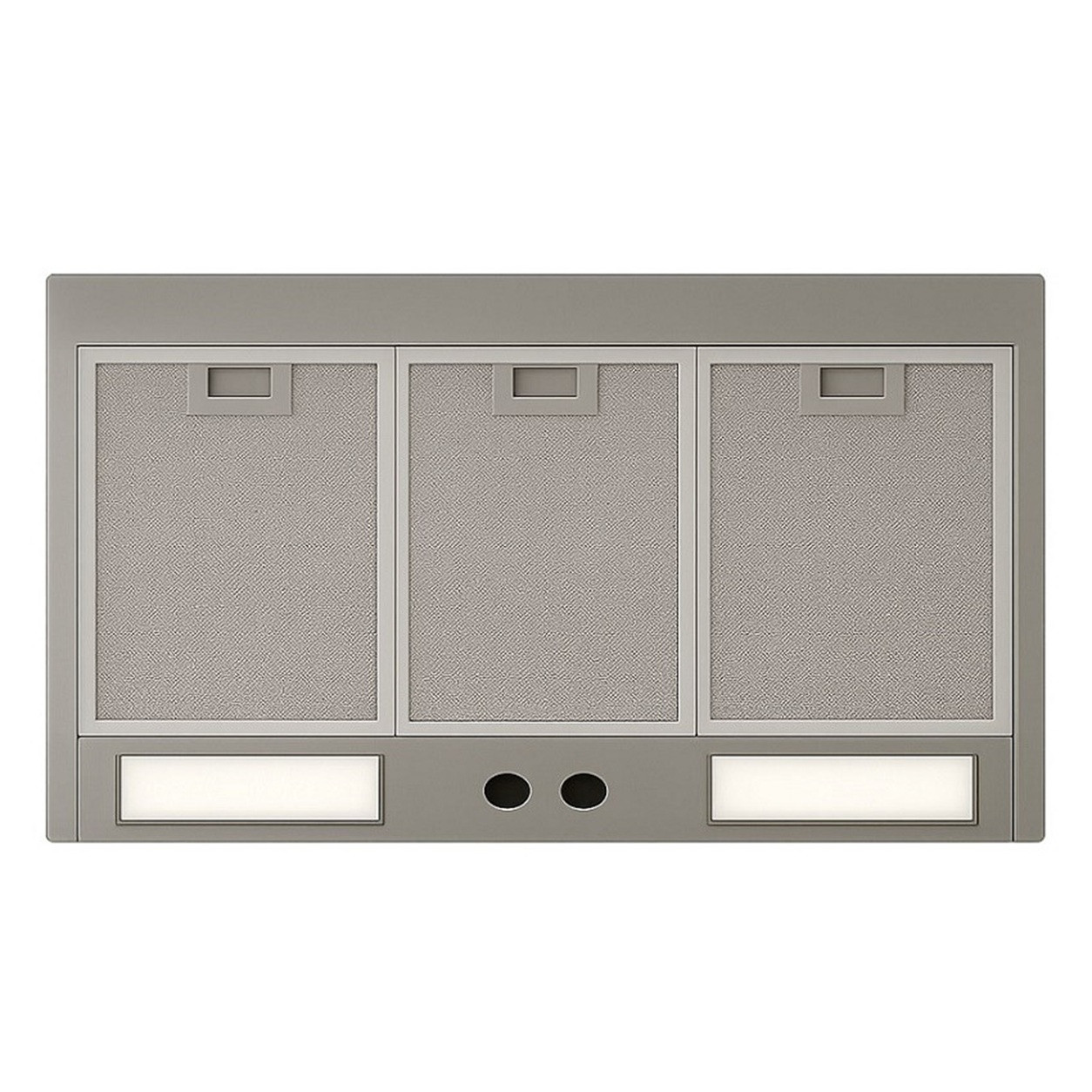

Rustica House supplies an optional economy 200 CFM insert only. The shell supports buyer-supplied internal inserts up to 1,260 CFM and external blowers up to 1,500 CFM when complete specifications are submitted before production. Provide the manufacturer, model, liner dimensions, cutout, duct diameter, discharge direction, controls, lighting, filters, and service access before fabrication.
Why This Hood
This design suits buyers who want visible metal craftsmanship without a crown, contrasting trim, pot rail, or traditional sweep. The repeated panel divisions keep a wide hood visually controlled, while natural zinc prevents the framework from appearing overly heavy. See how the monochromatic zinc construction and structured three-bay layout create a refined focal point across different kitchen interiors in our zinc riveted three panel hood kitchen gallery.
Design Difference
Many zinc hoods place several straps over a continuous curved shell. Here, the framing organizes the chimney, transition band, lower canopy, bottom edge, and side panels as one system. This creates a custom angular zinc hood with exposed rivets and framed panels rather than a standard enclosure with applied decoration.

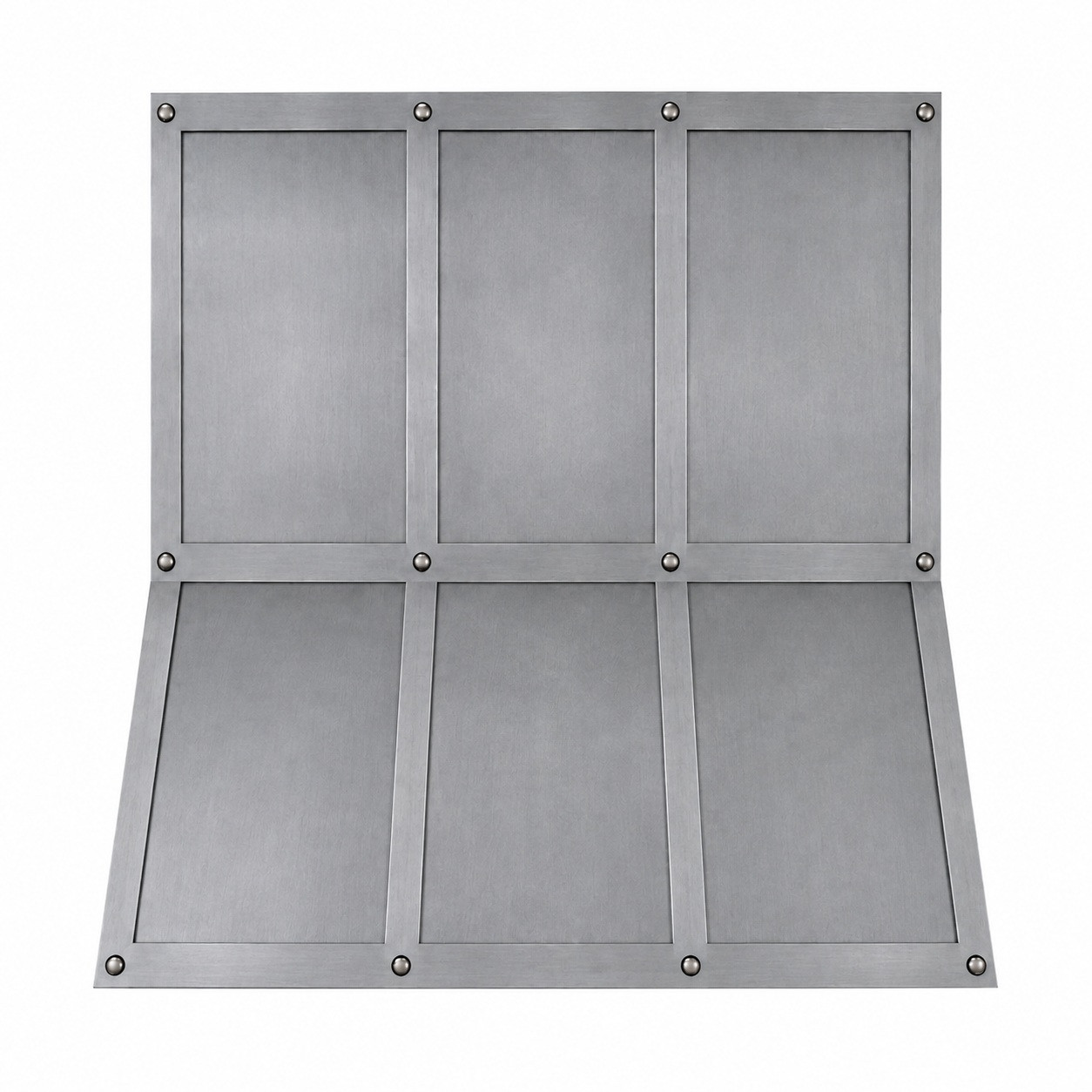

Panel Architecture
Three vertical bays continue from the upper chimney into the sloped lower body. Vertical straps establish height, while horizontal members define the upper panels, transition line, and lower frame. The recessed zinc fields produce shallow relief and narrow shadow lines.
Planning Options
Confirm size, surface treatment, mounting, and ventilation details before fabrication so the chimney, flare, and panel widths remain balanced.
| Planning Item | Available Choice | Why It Matters |
|---|---|---|
| Cooktop width | 28–78 inches or custom | Sets capture width |
| Total height | 24–72 inches | Controls chimney proportion |
| Surface texture | Smooth or hammered | Changes reflected light |
| Finish treatment | Natural, dark, or hand-polished | Sets tone and sheen |
| Mounting | Wall or island | Changes visible surfaces |
Material & Finish

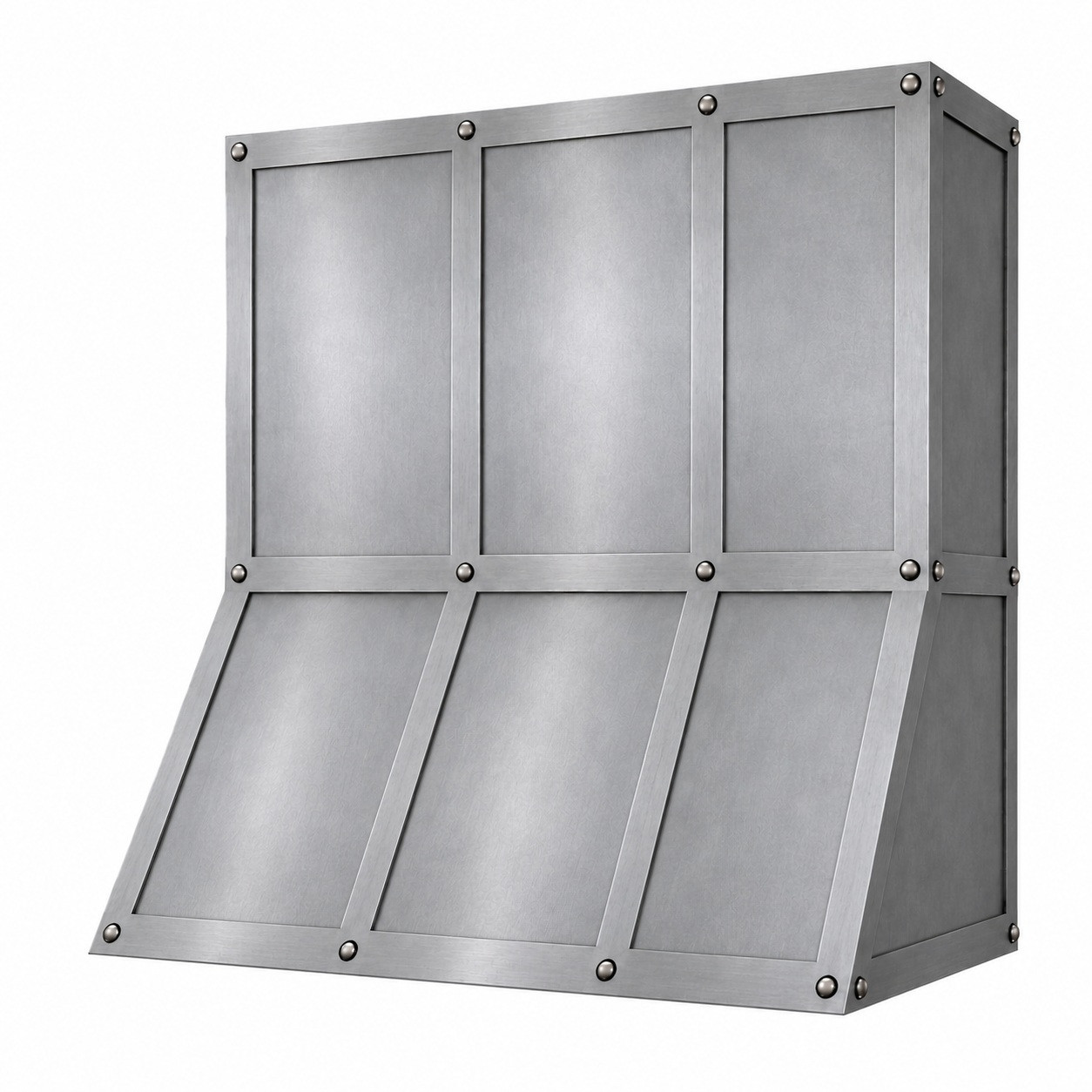

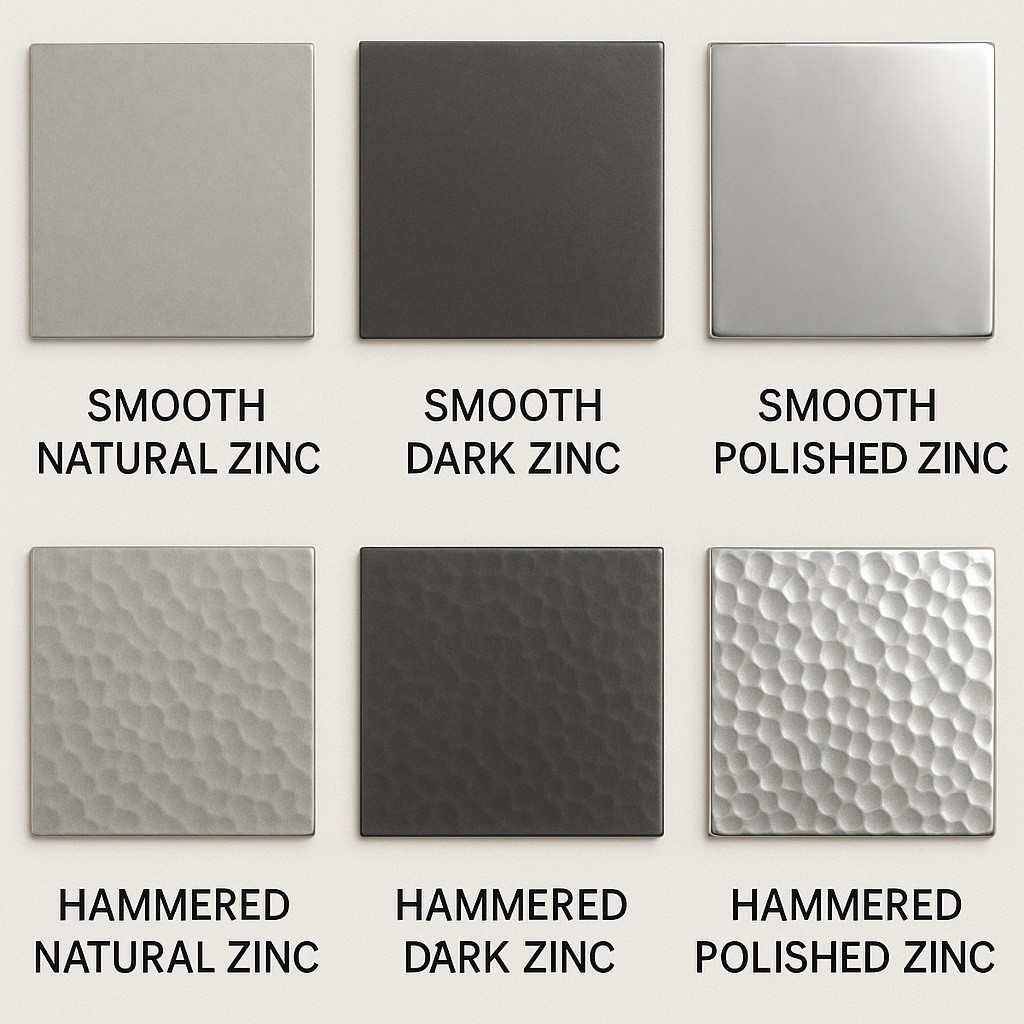

The featured surface is smooth natural zinc with soft mottling and lower reflectivity than polished stainless steel. The same material is used for the body, straps, and rivets, creating depth without contrasting metals. Available combinations include natural smooth, natural hammered, dark smooth, dark hammered, hand-polished smooth, and hand-polished hammered zinc.
Shape & Silhouette
A flat rectangular chimney establishes symmetry before the body widens through straight diagonal planes. The transition is angular rather than curved or domed. A flat top replaces crown molding, and the lower strap forms a restrained edge instead of an ornamental apron.
Exterior Strap Grid
Matching zinc straps frame every front field and connect the upper and lower sections. Because the framework remains monochromatic, it reads as part of the construction rather than contrasting ornament. The three-panel arrangement is especially effective on larger widths.
Rivet Layout
Rounded rivets mark outer corners, intersections, transition points, lower joints, and side connections. Their measured spacing highlights structural locations without covering every surface in hardware. Slight differences may occur because the framework is fitted by hand.

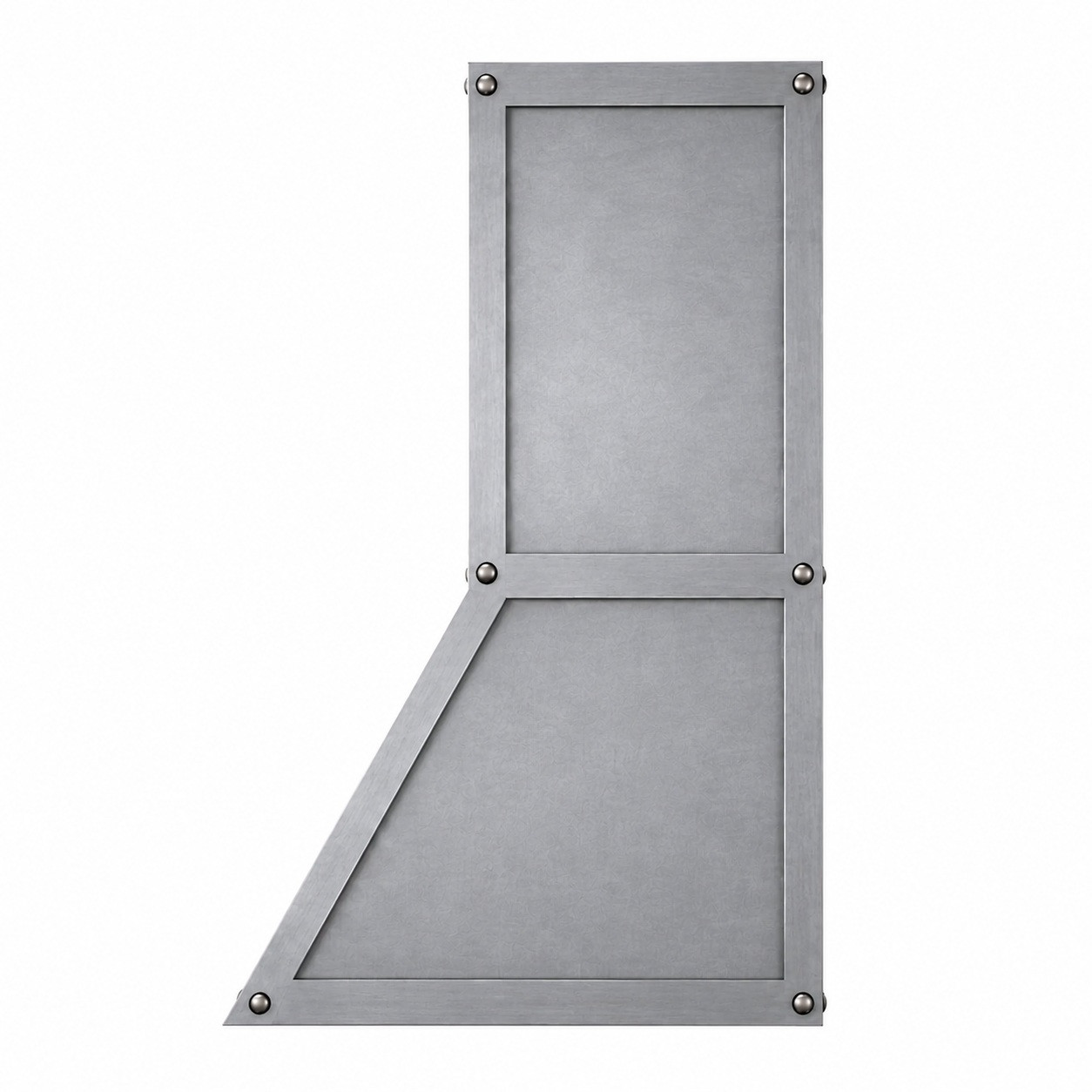

Finished Side Panels
Framed zinc fields and aligned horizontal members continue around the sides, giving angled views a complete treatment. This matters for island installations and wall hoods positioned beside shallow cabinets, windows, or open shelving.
Handmade Origin
Each hood is made to order by skilled metal artisans in Mexico. Zinc sheets are cut, formed, aligned, and fitted around approved dimensions before the straps and rivets are installed. Differences in seams, panel spacing, fastener placement, and tone are expected in handcrafted fabrication.
Artisan Testimony
Juan Carlos Hernández explains that straight panel lines require gradual forming because small changes become visible where the straps cross the sloped canopy. Learn more about Juan Carlos Hernández and his metalworking tradition.
Best Kitchen Styles
- Bright Industrial Loft: Natural zinc provides a cool focal point beside exposed brick, pale oak, factory windows, concrete, and industrial lighting. Its smooth finish reflects daylight softly without making the kitchen feel dark.

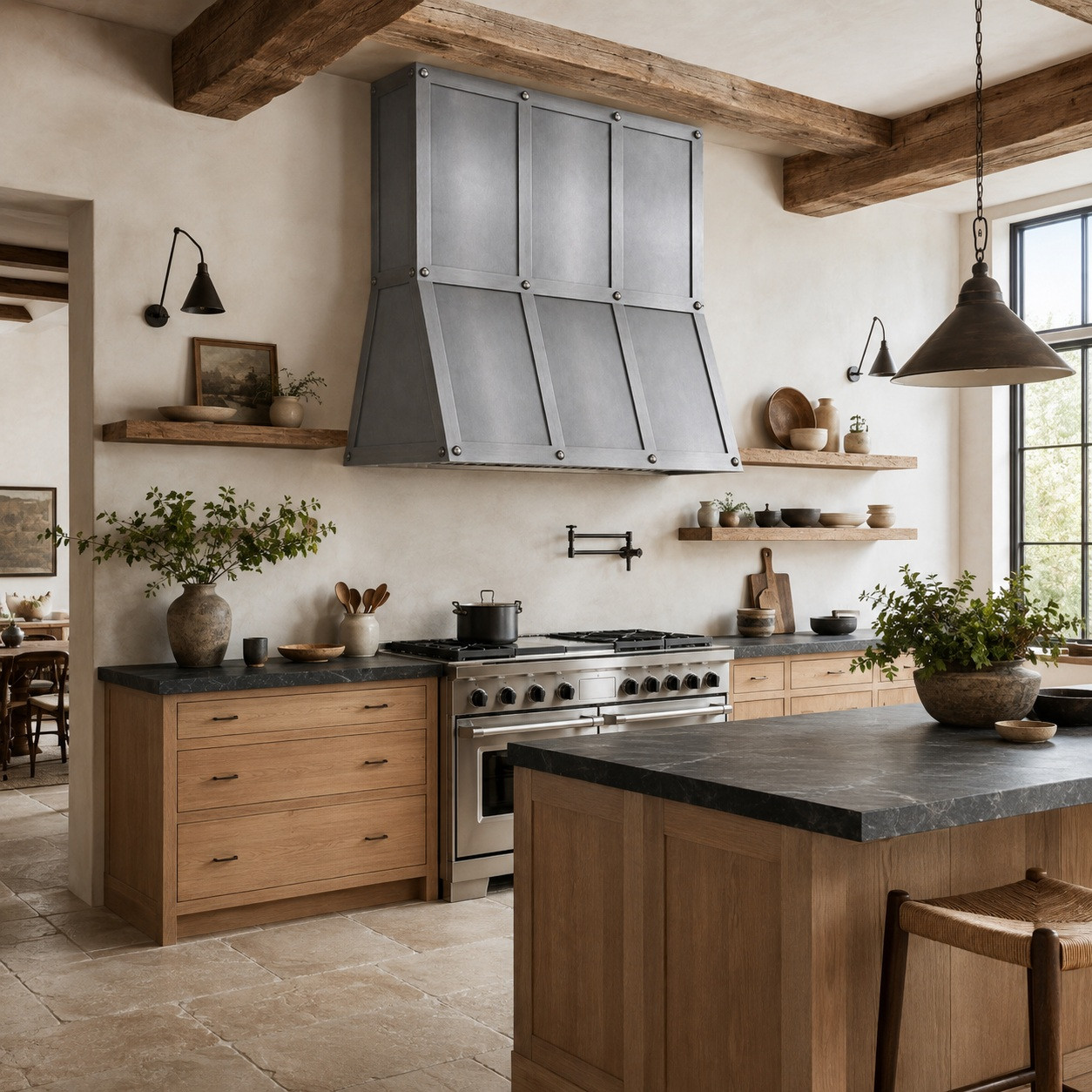

- Contemporary Rustic: Straight panel lines bring discipline to reclaimed beams, plaster, rift-cut oak, limestone, and handmade ceramics. Silver-gray zinc balances warm timber and irregular surfaces.

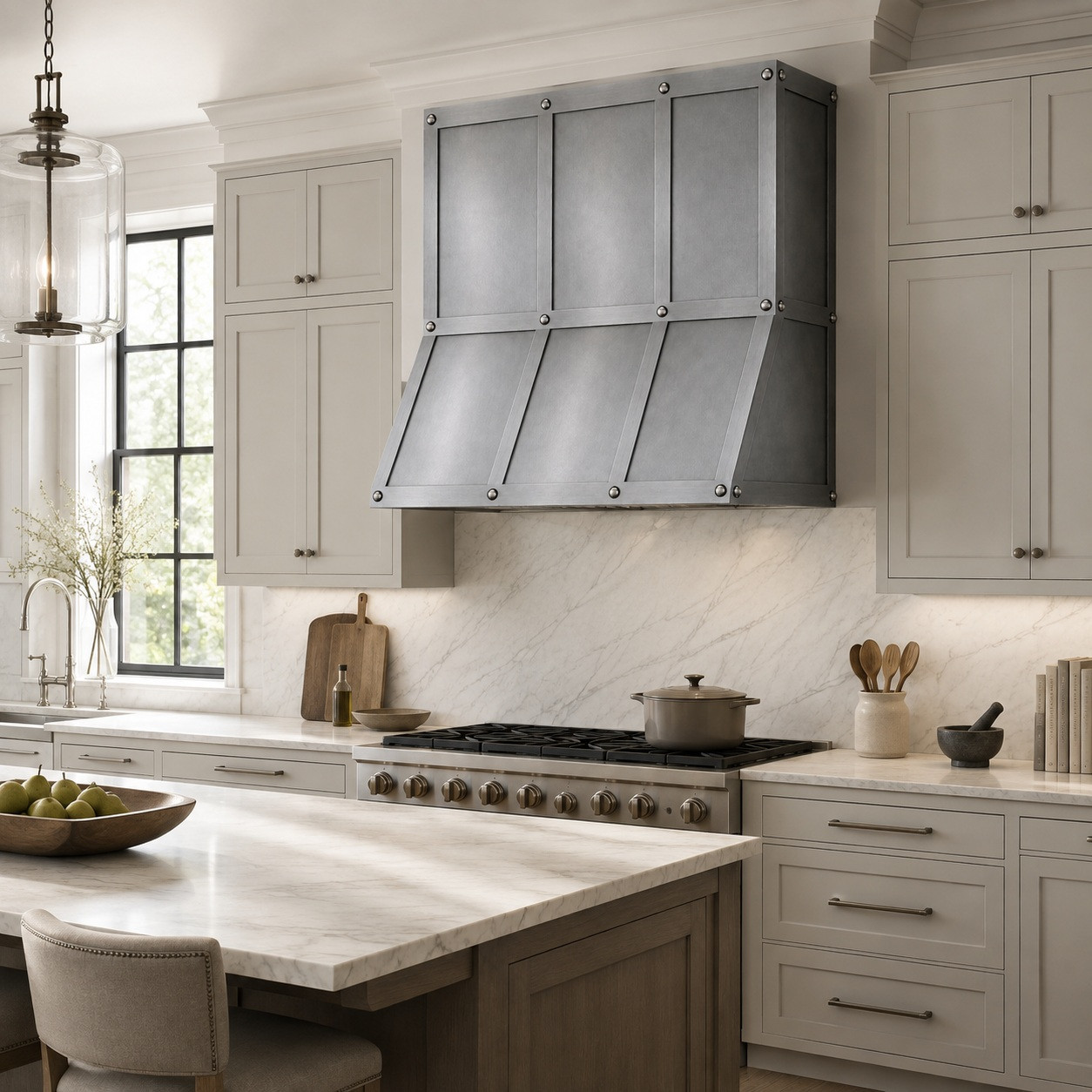

- Modern Transitional: The symmetrical front relates to Shaker cabinetry, while the angular canopy keeps the room current. Marble, quartzite, tailored millwork, and restrained hardware support the balanced composition.

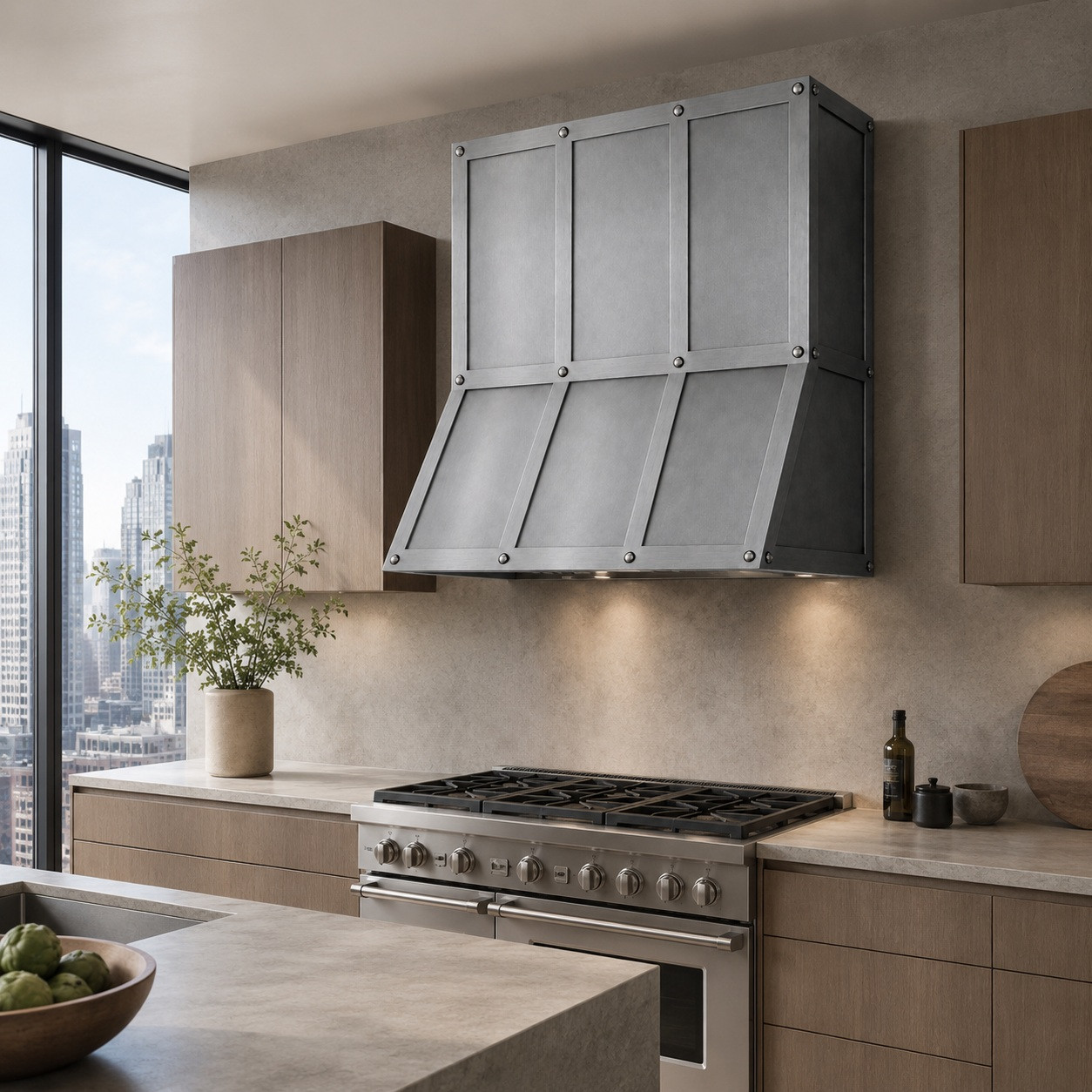

- Urban Contemporary: Flat-panel cabinets, city views, stone surfaces, and integrated appliances suit the geometric silhouette. Natural zinc softens crisp cabinetry lines while the framework becomes the primary detail.
Product Specifications
- Width: 28–78 inches or custom
- Height: 24–72 inches
- Depth: 24-inch standard
- Material: Handcrafted zinc
- Profile: Angular flared canopy
- Chimney: Straight rectangle
- Front: Three vertical panels
- Framework: Zinc straps
- Fasteners: Exposed zinc rivets
- Texture: Smooth or hammered
- Finish: Natural, dark, or polished
- Crown: No crown molding
- Sides: Framed visible panels
- Mounting: Wall or island
- Insert: Optional 200 CFM
- Internal CFM: Up to 1,260
- External CFM: Up to 1,500
- Origin: Handmade in Mexico
- Lead time: About 6 weeks
- Delivery: About 8 weeks in total
- Shipping: Free to the USA mainland
- SKU: HG10U4W29
- MPN: HG-10U4W-29
PDF and CAD Downloads

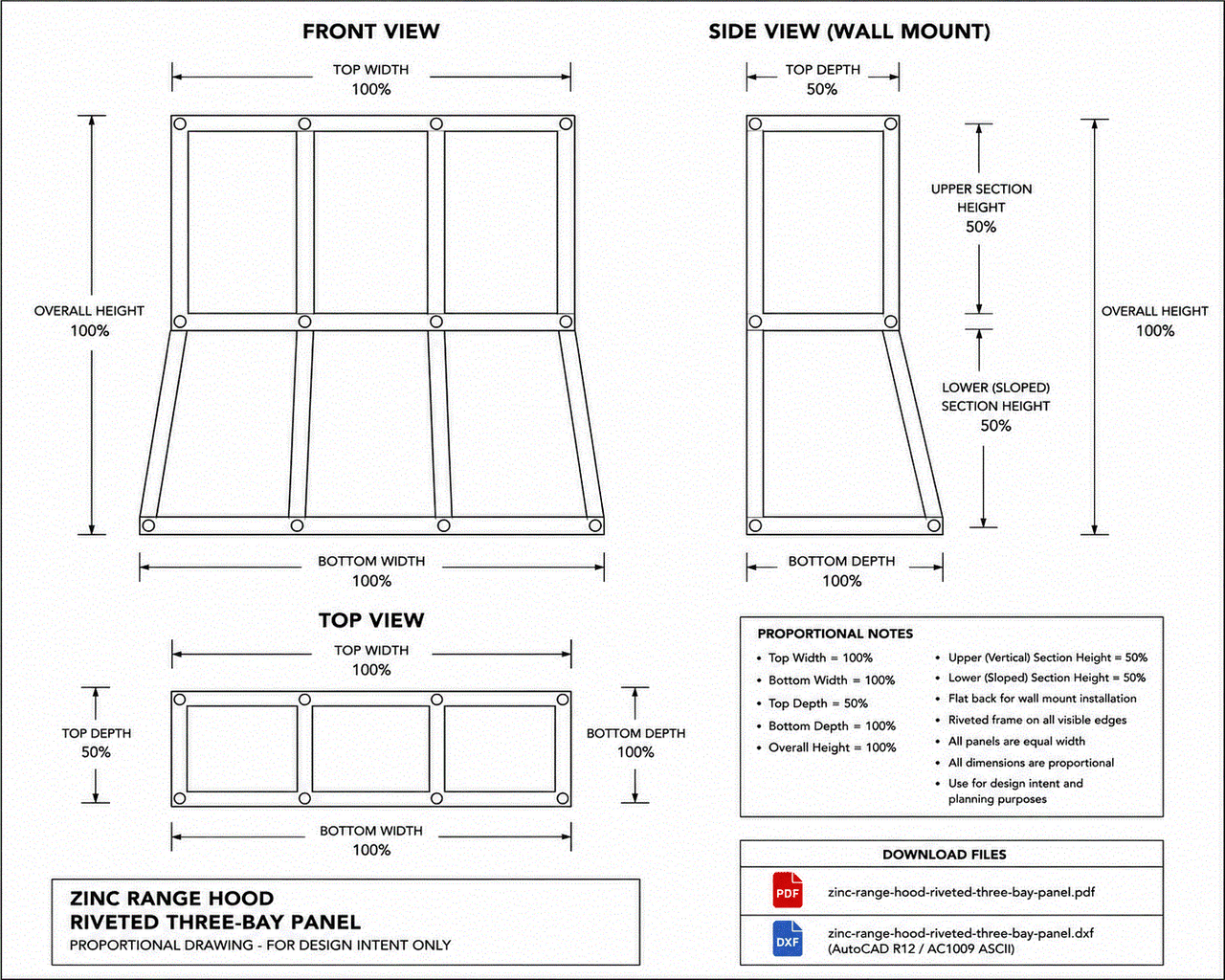

Use the proportional PDF and AutoCAD R12 DXF drawing to review the straight chimney, three-panel grid, angular canopy, finished sides, and installation proportions.
How Ordering Works
Provide the cooktop width, ceiling height, hood dimensions, mounting configuration, texture, finish, and ventilation specifications. Rustica House confirms the chimney, flare, panel spacing, side treatment, duct opening, and supports before fabrication.
FAQ – Riveted Zinc Hood
A: Its angular flare, three-panel front, matching zinc framework, crown-free top, and exposed rivets create a refined industrial design.
A: Choose natural, dark, or hand-polished zinc with either a smooth or hammered surface.
A: No. The body, straps, and visible rivets use zinc for a unified appearance.
A: Yes. Island versions require finished surfaces, structural ceiling support, and confirmed duct routing.
A: Yes. Complete insert or blower specifications must be approved before production.
A: Yes. Natural zinc may develop water spotting, tonal variation, brighter edges, fingerprints, and gradual patina.
Customize Your Hood
Share your cooking-surface dimensions, ceiling height, mounting format, preferred texture, finish treatment, and ventilation details. Rustica House will confirm the proportions and prepare your custom natural zinc range hood with a riveted architectural panel grid for made-to-order fabrication.
Related Resources
- Browse zinc hood designs
- Industrial zinc range hoods
- Modern zinc range hoods
- Hammered and smooth finishes
- Range hood insert sizing
Installation Guide
Install the hood according to insert clearances, structural conditions, appliance requirements, and local codes. Wall versions require secure blocking, while island models need engineered ceiling support. Confirm mounting height, duct routing, electrical service, and filter access in the metal range hood installation guide.
Shipping & Returns
Each hood ships in protective insured crating. Inspect the shipment and document visible damage before signing. Freight procedures, custom-order conditions, and return eligibility are explained on the shipping and returns page.
Warranty
Manufacturing coverage, finish exclusions, installation responsibilities, and buyer-supplied ventilation terms are described in the Rustica House warranty. Natural patina and handmade variation are not defects.
Care & Maintenance
Clean zinc with mild soap and a soft cloth, then dry promptly. Avoid abrasives, ammonia, acids, aggressive degreasers, and unapproved polish. Review the zinc range hood care and maintenance guide for additional recommendations.
Disclaimer: This product is handmade. Variations in zinc tone, seams, panel spacing, rivet placement, edge transitions, and artisan surface movement are natural characteristics of custom metalwork. Lifestyle images may show optional configurations. All product images are protected by copyright and may not be used without Rustica House written permission.
