Kitchen Range Hood Inserts: Choosing the Right Ventilation System for a Custom Metal Hood

Kitchen range hood inserts provide the ventilation, lighting, filtration, and controls installed inside a decorative hood shell. When ordering a handcrafted copper, zinc, iron, brass, or pewter range hood, homeowners may select the included economy ventilation option or provide a third-party insert that better matches their cooking equipment and airflow requirements. Every handcrafted metal kitchen hood must be designed around the exact dimensions and specifications of the selected insert, making early planning essential for proper fit, installation, and performance.

Blog Summary

• Component: Kitchen range hood insert
• Functions: Fan, filters, lights, controls
• Options: Included or buyer supplied
• Ventilation: Ducted or recirculating
• Planning: Confirm before production

What Is a Range Hood Insert?

A range hood insert is the working ventilation equipment installed inside a decorative hood enclosure. The exterior shell provides the architectural appearance, while the insert contains the mechanical components responsible for capturing grease, steam, smoke, heat, and cooking odors.

Most inserts include a blower or fan, washable filters, integrated lighting, control switches, and a connection point for ductwork. Some systems also provide several fan speeds, adjustable lighting, remote controls, or compatibility with an external blower.

Decorative Hood Versus Ventilation Insert

The handcrafted metal hood and the insert perform two different roles. Copper, zinc, iron, brass, or pewter range hoods create the visible architectural shell, while the insert manages ventilation and lighting.

Because the insert remains hidden inside the enclosure, it is possible to combine traditional artisan metalwork with modern ventilation equipment from the appliance manufacturer selected for the project.

Insert Components

• Blower: Moves cooking air
• Filters: Capture airborne grease
• Lighting: Illuminates cooktop
• Controls: Operate fan and lights
• Duct Collar: Connects exhaust system

Three Ways to Configure a Custom Hood

A handcrafted metal hood may be ordered as a decorative shell prepared for natural exhaust, with an economy insert supplied by Rustica House, or customized around a buyer-supplied ventilation system.

The correct option depends on the cooking appliance, desired airflow, kitchen layout, local building requirements, budget, and availability of exterior ductwork.

Ventilation Options

• Hood Shell: Prepared for ventilation
• Economy Insert: Included 200 CFM unit
• Buyer Insert: Built to supplied specs
• Internal Blower: Mounted inside hood
• External Blower: Mounted remotely

The Rustica House Economy Insert

Rustica House offers an economy 200 CFM insert for projects that require a simple integrated ventilation system. This option includes basic fan operation, filtration, and lighting suitable for lighter residential cooking applications.

Homeowners who require greater airflow or advanced controls should purchase a compatible third-party insert and provide its complete technical documentation before the metal hood enters production.

Using a Buyer-Supplied Insert

A custom hood can be prepared for many buyer-supplied ventilation systems. Rustica House can build the interior for an internal insert rated up to approximately 1,200 CFM or an external blower system rated up to approximately 1,500 CFM when the required specifications are provided before production.

The interior customization is based on the supplied dimensions, liner requirements, duct location, mounting points, and service clearances. The insert itself must be purchased separately by the customer.

Why the Insert Must Be Selected First

The ventilation insert should be finalized before the decorative hood is manufactured. Insert width, depth, height, duct position, liner shape, electrical access, and mounting requirements affect the internal construction of the hood.

Providing only the appliance brand or general width is not enough. The complete manufacturer specification sheet is required to prepare the hood accurately.

Required Insert Information

• Brand: Insert manufacturer
• Model: Exact product number
• Width: Overall insert dimension
• Depth: Front-to-back dimension
• Duct: Diameter and location

Hood Size Versus Insert Size

The insert must be smaller than the exterior hood. Space is required around the ventilation equipment for support, installation, airflow, fasteners, and service access.

As a practical planning guideline, a custom hood is often designed approximately six inches wider and six inches deeper than the selected insert. The exact dimensions depend on the insert construction and the geometry of the hood.

General Sizing Guide

• Hood Width: About 6 inches wider
• Hood Depth: About 6 inches deeper
• Insert Height: Confirm inside clearance
• Duct Space: Allow proper connection
• Service Area: Preserve access

Internal and External Blowers

An internal blower is installed within the hood or insert assembly. It offers a straightforward installation because the fan, filters, lights, and controls are usually contained in one integrated unit.

An external blower places the motor farther away, such as on the roof or an exterior wall. Moving the blower away from the kitchen may reduce perceived motor noise, although installation and future servicing can become more complex.

Inline Blower Systems

An inline blower is installed within the duct run between the hood and the exterior termination. This arrangement can reduce noise near the cooking area while keeping the motor more accessible than some rooftop installations.

The insert, blower, controls, ductwork, and electrical components must be designed to operate together as one compatible system.

Blower Locations

• Internal: Inside hood assembly
• Inline: Within duct system
• External: Roof or outside wall
• Remote: Reduced nearby noise
• Integrated: Insert and blower combined

Ducted Range Hood Inserts

A ducted insert captures cooking air and moves it outside the building through metal ductwork. This configuration is generally preferred when exterior ventilation is available because grease, moisture, heat, and odors are removed from the kitchen.

The contractor should confirm the duct diameter, route, length, number of elbows, termination point, and local ventilation requirements before installation.

Recirculating Range Hood Inserts

A recirculating insert filters the air and returns it to the kitchen rather than exhausting it outdoors. This option is useful in apartments, condominiums, or remodeling projects where exterior ductwork cannot be installed.

Recirculating systems typically require grease filters and charcoal or odor filters. Custom side openings can be added to the decorative hood when required to release filtered air back into the room.

Ventilation Methods

• Ducted: Exhausts air outdoors
• Recirculating: Returns filtered air
• Top Vent: Duct exits above hood
• Rear Vent: Model-dependent option
• Side Openings: Recirculation outlet

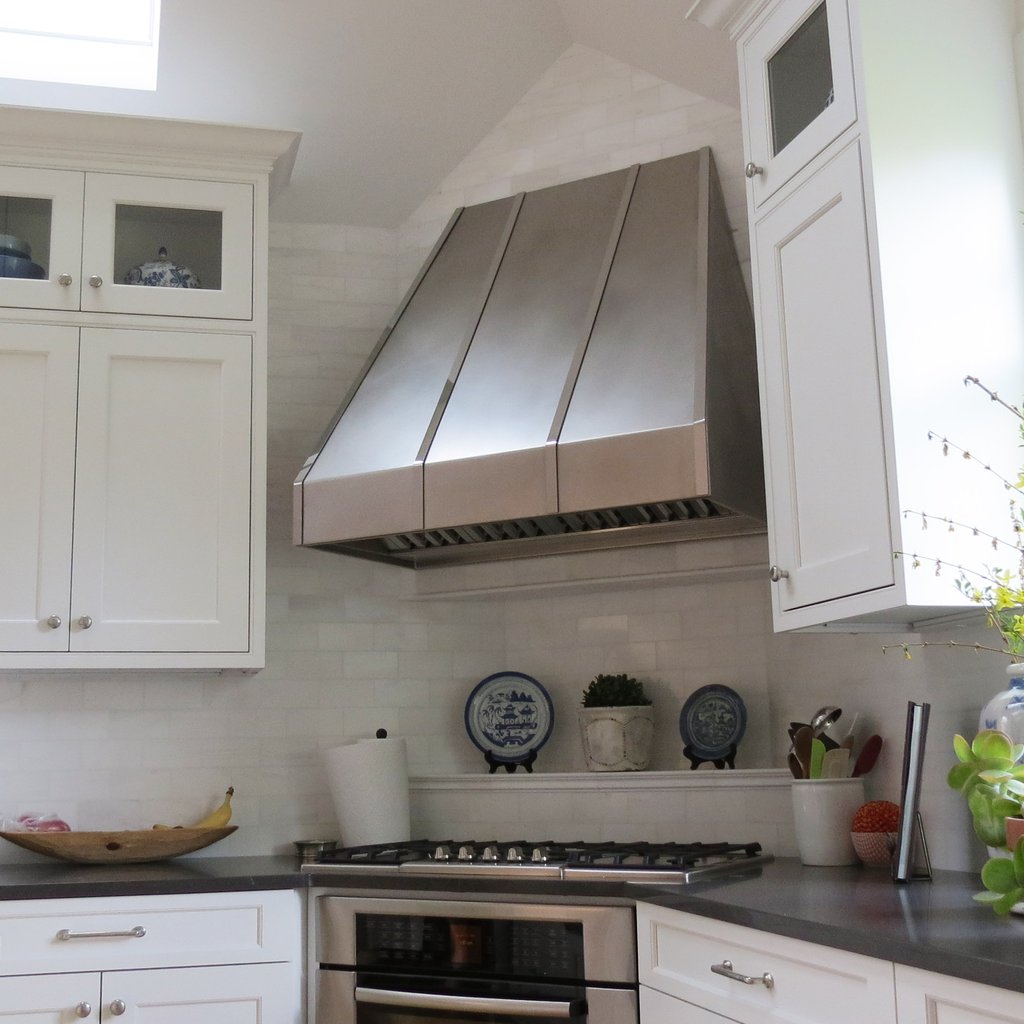

Wall-Mounted Insert Requirements

Wall-mounted hoods are installed against a vertical surface, so the insert may connect to ductwork routed upward through the ceiling or backward through the wall when the equipment and building conditions permit.

The hood is normally finished on the front and two sides, while the back remains open against the mounting wall. Structural blocking should be prepared before installation.

Island Insert Requirements

An island hood is visible from all sides and suspended from the ceiling. Its insert must be compatible with island installation, and the duct connection generally travels upward through the ceiling structure.

Island projects require careful planning for support, electrical access, duct routing, hood balance, and finished appearance on all four sides.

Why Some Inserts Do Not Fit Every Hood

Insert shape and construction can limit where the equipment may be used. Some models are designed specifically for wall mounting, while others are approved for island or custom enclosure installations.

Tall motors, angled housings, external control boxes, unusual duct positions, and wide liners may conflict with certain hood silhouettes. The technical drawing must therefore be reviewed before fabrication.

Compatibility Factors

• Mount Type: Wall or island
• Housing Shape: Flat or angled
• Motor Height: Interior clearance
• Control Box: Access location
• Liner: Required opening size

Blower Capacity and Cooking Equipment

The appropriate blower capacity depends on the range output, fuel type, cooking frequency, kitchen volume, duct configuration, and appliance manufacturer’s instructions. High-output gas ranges may require more ventilation than electric cooktops used for lighter cooking.

Rustica House does not recommend one universal blower capacity or insert brand for every kitchen. A qualified appliance professional, contractor, or ventilation specialist should determine the correct system for the project.

Duct Size and Airflow

Blower performance depends heavily on the duct system. A duct that is too small, excessively long, or filled with sharp turns may restrict airflow and increase noise.

The insert manufacturer’s duct requirements should be followed, and reducing the duct diameter below the specified size should be avoided unless approved by the manufacturer and local code.

Duct Planning

• Diameter: Follow insert specs
• Length: Keep run efficient
• Elbows: Limit sharp turns
• Termination: Vent correctly outdoors
• Material: Use approved metal duct

Makeup Air Considerations

Powerful ventilation systems may remove a substantial volume of air from the home. Depending on blower capacity, building tightness, local regulations, and other fuel-burning appliances, a makeup air system may be required.

A licensed contractor or HVAC professional should evaluate this requirement before the hood and blower are installed.

Lighting and Controls

Many inserts include integrated lights controlled separately from the fan. Depending on the model, the system may offer multiple lighting levels, fan speeds, delayed shutoff, heat sensors, or remote operation.

Because the switches and lighting are usually part of the insert, the decorative hood is fabricated to preserve access to those controls and components.

Possible Features

• Fan Speeds: Multiple airflow levels
• Lighting: Integrated task lights
• Separate Controls: Fan and light switches
• Remote: Model-dependent operation
• Delay Timer: Continued ventilation

Filter Types

Baffle filters are commonly used in higher-capacity ventilation systems because they separate grease from the airflow through a series of metal channels. Mesh filters use layered metal screens to capture grease and are often found in compact or lower-cost inserts.

Recirculating units may also require charcoal filters to reduce odors before the air returns to the room.

Common Filters

• Baffle: Durable metal filtration
• Mesh: Layered grease capture
• Charcoal: Odor reduction
• Washable: Reusable metal filters
• Replaceable: Model-specific media

Vent-a-Hood Inserts

Vent-a-Hood is one manufacturer sometimes selected by customers for custom metal hood projects. Certain compact models may work within smaller or more tapered decorative enclosures because of their housing shape.

Compatibility should always be confirmed using the exact model drawing rather than assuming that every Vent-a-Hood product fits every custom enclosure.

Wolf Pro Inserts

Wolf offers professional-style ventilation products in several widths for larger residential cooking equipment. These inserts are often selected for substantial custom hoods and high-output ranges.

The exact overall width, depth, blower configuration, liner requirements, and duct location must be compared with the proposed hood dimensions before production.

Miele Inserts

Miele ventilation products may be suitable for tall or large custom hood enclosures, depending on the selected model and installation type. Some systems include advanced controls and higher-end appliance integration.

Because these inserts may require specific clearances and mounting conditions, the complete installation document should be reviewed before the decorative hood is designed.

Other Insert Manufacturers

Many other ventilation manufacturers may be compatible with a Rustica House hood when their equipment is appropriately sized and approved for installation inside a custom enclosure.

Brands previously used or supplied by customers include JennAir, Imperial, Broan, Teka, Faber, Proline, Zephyr, Thermador, and other residential or professional ventilation manufacturers.

Brand Selection Factors

• Dimensions: Must fit hood interior
• Airflow: Match cooking needs
• Mounting: Wall or island approval
• Service: Local parts availability
• Certification: Verify applicable listing

No Universal Insert Recommendation

Rustica House does not endorse one ventilation manufacturer as the best option for every project. Insert selection depends on the range, room, budget, installation method, airflow target, noise preference, service availability, and local requirements.

The decorative hood can be adapted to many systems, but final compatibility remains dependent on receiving accurate and complete technical information before fabrication.

Metal Choice Does Not Determine the Insert

The insert may be installed inside a copper, zinc, iron, brass, or pewter shell. The exterior material affects the appearance, patina, and decorative style of the hood, but the ventilation system is selected primarily according to dimensions and mechanical requirements.

A smooth zinc hood and a hammered exhaust copper hood may use the same insert when both enclosures provide the necessary internal space.

Planning for a Copper Range Hood

Copper range hoods are frequently customized around buyer-supplied inserts because homeowners often want stronger airflow than the economy ventilation option provides.

Browse additional copper range hoods while comparing the exterior dimensions needed for the selected ventilation system.

Planning for Zinc and Iron Hoods

Zinc and iron hoods follow the same basic insert planning process. The technical requirements of the ventilation equipment determine the internal opening, support structure, and duct location, while the exterior hood remains fully customizable in shape, finish, straps, rivets, and molding.

The hood style should therefore be selected together with the insert rather than as two unrelated purchases.

Service and Future Replacement

Ventilation equipment may eventually require cleaning, repair, or replacement. The hood design should preserve reasonable access to filters, lights, controls, motor components, and mounting fasteners.

Highly remote blowers can reduce motor noise near the kitchen, but roof or attic placement may make future servicing more complicated. Access should be discussed with the contractor during planning.

Service Planning

• Filters: Easy removal
• Lights: Accessible replacement
• Controls: Reachable components
• Motor: Allow service access
• Documentation: Retain model details

Professional Installation

A licensed contractor or qualified hood installer should install the ventilation system and decorative enclosure. The project may involve structural support, electrical connections, ductwork, blower wiring, fire clearances, and local code compliance.

Rustica House fabricates the decorative hood around the provided information but does not replace the role of the local installer, appliance professional, or mechanical contractor.

Pre-Order Checklist

Before the hood enters production, confirm the exact range, insert, blower type, duct method, hood dimensions, mounting style, ceiling height, and electrical requirements.

Project Checklist

• Range: Confirm appliance model
• Insert: Select exact model
• Specifications: Send complete PDF
• Hood Size: Confirm exterior dimensions
• Installer: Review before ordering

Cleaning the Insert

Grease filters should be cleaned according to the insert manufacturer’s instructions. Baffle and mesh filters may be washable, while charcoal filters typically require periodic replacement.

Keeping filters clean supports airflow, reduces grease accumulation, and helps maintain ventilation performance.

Cleaning the Decorative Hood

The exterior metal shell should be cleaned according to its material and finish. Copper, zinc, iron, brass, and pewter surfaces generally require mild cleaning products and soft cloths rather than abrasive chemicals.

The insert and decorative enclosure should be maintained separately because their surfaces and finishes may require different care.

Why Custom Insert Planning Matters

A custom hood can provide excellent architectural impact and ventilation compatibility, but only when the insert is selected and documented early. Designing the enclosure without complete specifications may lead to insufficient clearance, duct conflicts, control access problems, or costly installation changes.

Coordinating the insert, hood, range, contractor, and ventilation plan before production provides the strongest foundation for a successful project.

Ordering and Project Support

When ordering a custom metal hood, include the insert brand and model in the order notes and provide the complete specification sheet before production begins. Rustica House can then prepare the interior according to the supplied equipment dimensions.

Visit the metal range hood collection to compare copper, zinc, iron, brass, and mixed-metal designs suitable for custom ventilation inserts.

Conclusion

Kitchen range hood inserts are the mechanical systems that allow decorative copper, zinc, iron, brass, and pewter hoods to provide practical ventilation, filtration, lighting, and controls. Homeowners may select the Rustica House economy 200 CFM insert or provide a compatible third-party system for greater airflow and advanced features. By finalizing the insert before production, supplying complete technical specifications, and coordinating installation with a qualified contractor, a custom metal hood can deliver both strong architectural presence and ventilation designed around the kitchen’s actual needs.
