Product Description

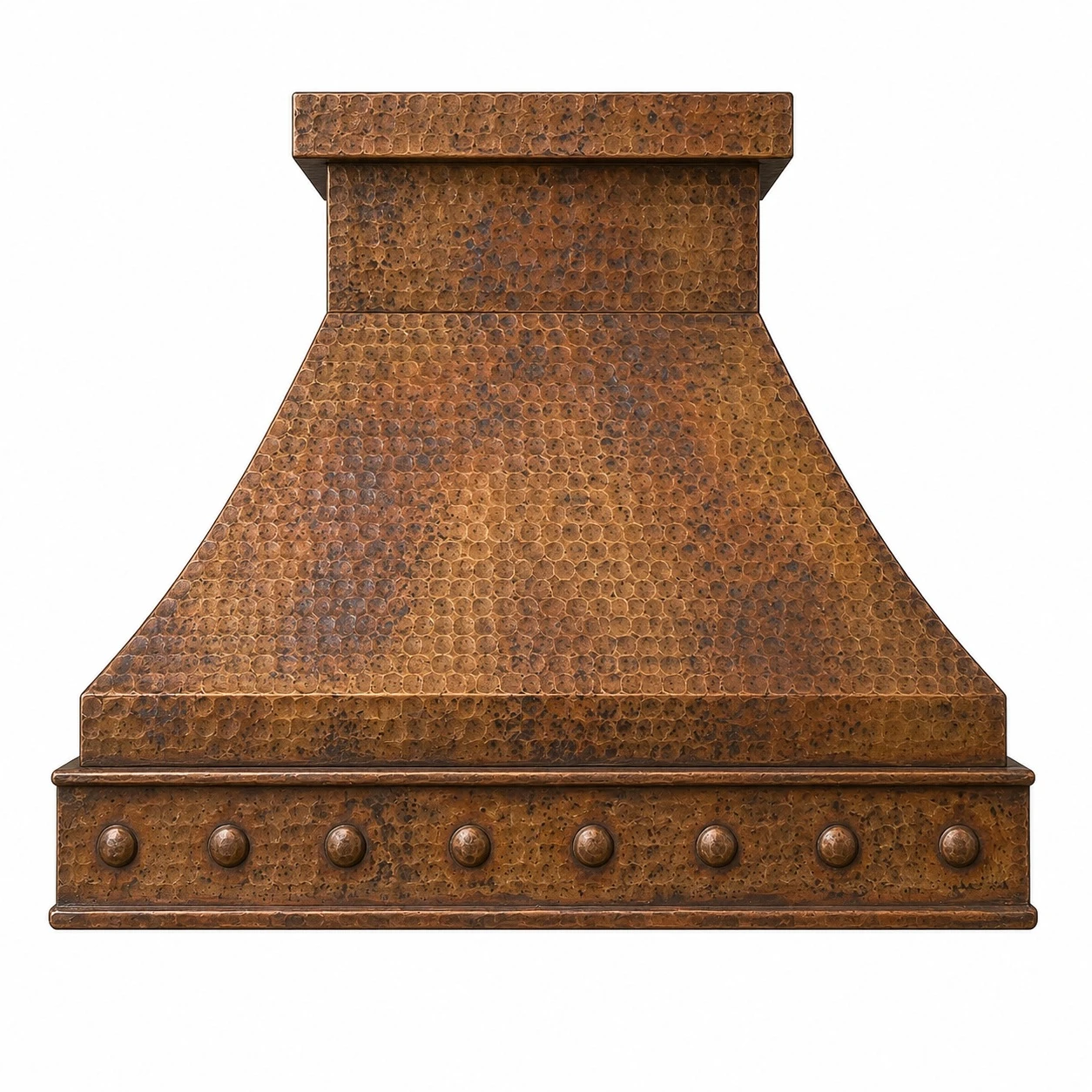

This round-hammered trapezoid copper range hood with extended apron combines clean sloping architecture with substantial handcrafted details. Broad uninterrupted copper planes taper toward a compact chimney, while a deep projecting apron creates a strong horizontal base. Rectangular crown molding completes the upper section and balances the apron without decorative straps, riveted frameworks, embossed motifs, or contrasting metals. Closely spaced round hammer marks softly scatter light across the canopy while preserving its geometric shape. The coffee patina shown adds deep brown tones with warmer copper and amber variation. Handcrafted from premium copper in Santa Clara del Cobre, Mexico, the enclosure can be fabricated for wall-mounted or kitchen-island installation. Six copper finishes, custom dimensions, and flexible ventilation preparation allow the hood to coordinate with individual cooking spaces. Review sizing, finishes, ventilation, and customization for this design in our hammered copper extended-apron guide. Customize this apron-and-crown copper hood for your kitchen today.
Product Summary
- Clean trapezoid canopy
- Round-hammered copper texture
- Deep extended apron
- Rectangular crown molding
- Uninterrupted copper panels
- No decorative vertical straps
- Premium 16-gauge copper
- Six copper finish options
- Wall or island installation
- Made to order in Mexico
Custom Sizing
Each hood is made to order so its proportions coordinate with the cooking surface, cabinetry, backsplash, and ceiling. Widths are available from 28 to 78 inches, heights from 24 to 72 inches, and standard depth is 24 inches. Custom fabrication allows the sloping canopy, deep apron, chimney, and rectangular crown to remain visually balanced as the overall dimensions change.
Measurements Needed
Provide the cooking-surface width, desired hood width, overall height, ceiling height, mounting height, depth, cabinet clearances, backsplash thickness, and duct location. Island projects also require the cooktop centerline and available ceiling framing. Accurate measurements help determine canopy proportions, apron projection, crown position, ventilation opening, and structural requirements before fabrication.
Ventilation
The handcrafted copper enclosure and ventilation equipment are planned separately. Rustica House can supply an optional 200 CFM insert for compatible applications. Buyer-supplied internal inserts up to 1,260 CFM and external blower systems up to 1,500 CFM can be accommodated when complete specifications are provided before production. The enclosure can be prepared for ducted or suitable ductless systems with top or rear venting.
Drawing Approval
Confirm the width, height, depth, apron projection, crown dimensions, insert opening, and duct centerline before production. For buyer-supplied ventilation, provide the manufacturer, model, cutout dimensions, duct size, controls, lighting, filters, and service clearances. Early approval helps coordinate the enclosure with cabinetry, structural framing, electrical connections, ductwork, and mechanical equipment.
Trapezoid Architecture
The canopy uses straight sloping planes instead of the sweeping concave curves associated with a bell-shaped hood. Its broad lower body narrows toward the chimney, producing a clearly defined trapezoidal silhouette. This geometry gives the design architectural presence while allowing the round-hammered copper surface, extended apron, and rectangular crown to provide the decorative character.
Uninterrupted Canopy
Broad copper panels remain free of vertical straps, applied bands, contrasting metals, and embossed ornament. Light can therefore travel continuously across the sloping planes and reveal subtle changes in hammering and patina. This clean front distinguishes the design from traditional trapezoidal copper hoods that depend on riveted frameworks or decorative appliqués for visual structure.
Deep Extended Apron
The deep extended apron is the strongest architectural counterweight to the broad trapezoid canopy. Its substantial projection establishes a pronounced horizontal foundation above the cooking area rather than functioning as a narrow trim ledge. The simple copper surface keeps attention on proportion, texture, and patina instead of relying on embossed artwork, rivets, or decorative overlays.
Rectangular Crown
Defined rectangular molding finishes the chimney and balances the substantial apron below. Its straight horizontal geometry reinforces the clean trapezoidal architecture and creates a deliberate transition toward the ceiling or surrounding cabinetry. The crown adds depth and shadow without the elaborate stepped ornament, riveted trim, or oversized molding found on more traditional copper hood designs.
Unique Design
This model is distinguished by four characteristics working together: a clean trapezoid body, round-hammered texture, deep extended apron, and rectangular crown. The absence of vertical straps leaves the broad copper canopy visually uninterrupted. This restrained construction separates the hood from models centered on riveted bands, iron ornament, mixed metals, decorative aprons, or segmented front panels.
Copper Texture
Closely spaced rounded impressions create a softer pattern than deep or aggressively irregular hammering. The shallow marks scatter reflected light across the broad sloping panels while allowing the trapezoidal geometry to remain visually dominant. Individual impressions naturally vary in depth and spacing because the surface is worked by hand rather than reproduced as a uniform machine texture.
Round Hammering
Round hammering is particularly effective on this strap-free canopy because there are few applied details competing with the surface. Light reveals thousands of small impressions as viewing angles change, giving the hood movement without making it appear heavily distressed. The texture also emphasizes the handmade character of the apron, chimney, and crown molding.

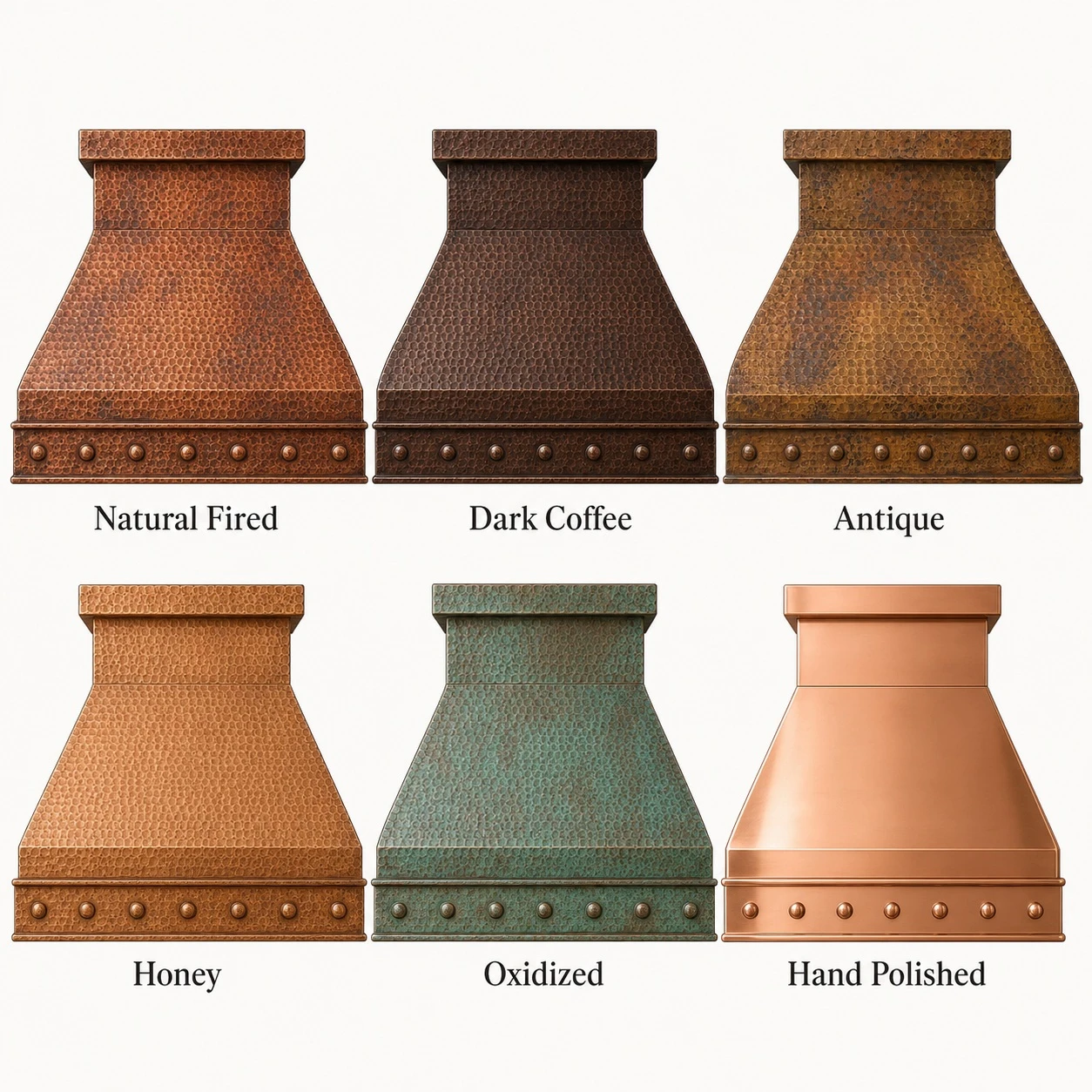

Copper Finishes
The coffee patina shown produces deep brown coloration with warm copper and amber undertones. Other options include natural fired, antique, honey, green oxidized, and hand-polished copper. Antique is more subdued and aged, while honey creates a warmer appearance. Green oxidation introduces weathered coloration. Hand-polished copper is smooth rather than hammered and offers brighter metallic reflections.
Mounting Options
The enclosure can be fabricated for wall-mounted or kitchen-island installation. Mounting type should be selected before production because structural attachment, exposed surfaces, ventilation preparation, and finishing requirements differ. Both configurations preserve the trapezoid canopy, deep apron, rectangular crown, and clean uninterrupted copper surfaces that distinguish this particular design.
Wall-Mount Version
The wall-mounted version uses a flat rear surface and works naturally with plaster, stone, handmade tile, brick, or slab backsplashes. Its strap-free front provides a clean focal point between surrounding cabinetry. Confirm structural framing, cabinet clearances, backsplash thickness, mounting height, electrical service, insert dimensions, and duct position before approving fabrication.
Kitchen Island Version
The island version finishes exposed surfaces for viewing from several directions. Its sloping side planes, apron projection, crown depth, hammering, and patina become especially visible from angled viewpoints. Island projects require suitable overhead support and careful coordination of cooktop position, ceiling framing, mounting height, electrical service, duct routing, and ventilation equipment.
Buyer Planning
Plan the hood dimensions, copper finish, mounting type, ventilation equipment, and structural requirements together. The relationship between the broad trapezoid canopy, deep apron, chimney, and rectangular crown should remain balanced as dimensions change. Early coordination also helps prevent conflicts with cabinetry, backsplash materials, framing, electrical connections, ductwork, and the selected ventilation system.
| Planning | Confirm | Buyer Decision |
|---|---|---|
| Dimensions | Width, height, depth | Match cooking area |
| Finish | Six copper options | Coordinate materials |
| Mounting | Wall or island | Confirm support |
| Ventilation | Insert or blower | Send specifications |
| Ducting | Top or rear route | Confirm before build |
Range Hood Specifications
- Shape: Trapezoid canopy
- Apron: Deep extended design
- Crown: Rectangular molding
- Straps: None
- Material: Premium 16-gauge copper
- Texture: Round hand hammered
- Width: 28–78 inches
- Height: 24–72 inches
- Depth: 24 inches standard
- Finishes: Six copper options
- Mount: Wall or island
- Insert: Optional 200 CFM
- Internal: Up to 1,260 CFM
- External: Up to 1,500 CFM
- Venting: Top or rear
- Build: Made to order
- Origin: Santa Clara del Cobre
- SKU: AH83H5N58

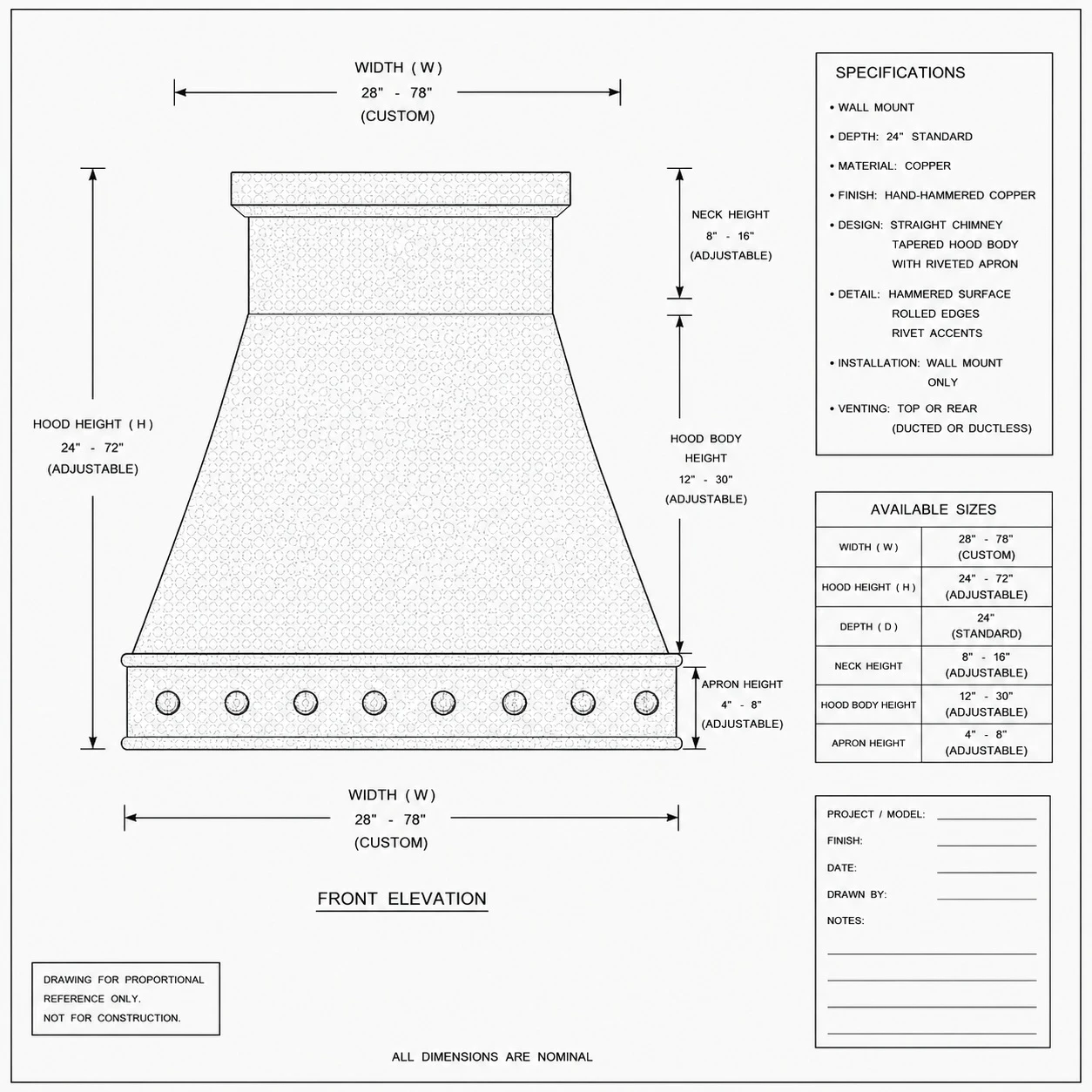

PDF and CAD Downloads
Use the proportional drawing and CAD file to review the trapezoidal profile, apron projection, crown dimensions, insert opening, and surrounding clearances. These technical files support planning by homeowners, designers, cabinetmakers, and contractors. Confirm final dimensions and buyer-supplied ventilation specifications before fabrication begins.
Craftsmanship
Each enclosure is handcrafted in Santa Clara del Cobre, Mexico. Experienced coppersmiths form the trapezoidal panels, create the round-hammered surface, fabricate the extended apron and rectangular crown, assemble the enclosure, and apply the selected finish by hand. Differences in hammer impressions, seams, edge transitions, tool marks, and patina distribution are expected characteristics of individually fabricated copperwork.
Coppersmith Testimony
The broad uninterrupted panels make controlled hand hammering especially important because the copper texture remains visible across the entire canopy. The apron and crown must also stay proportionally balanced when custom dimensions change. Learn more about the artisans and regional copperworking traditions in the Juan Carlos Hernandez Copper Artisan guide.
Kitchen Styles
The combination of handcrafted copper and restrained geometry allows this hood to work beyond traditional rustic interiors. Its coffee patina contributes warmth, while the clean strap-free canopy provides architectural simplicity. The design is particularly effective in kitchens where natural materials and straightforward cabinetry need a substantial focal point without elaborate ornament. Compare how the geometric canopy and projecting apron integrate with cabinetry in our trapezoid extended-apron kitchen images.
Best Kitchen Styles
- Farmhouse: Painted cabinetry, pale or reclaimed wood, apron-front sinks, handmade tile, and natural stone complement the warm copper and substantial apron.
- Modern: Flat-panel cabinetry, quiet stone surfaces, simple lighting, and restrained hardware benefit from the broad uninterrupted canopy and geometric form.
- Traditional Suburban: Framed cabinetry, stone counters, classic molding, neutral tile, and symmetrical layouts coordinate with the rectangular crown and deep apron.
- Transitional: Shaker cabinetry, quartz or marble, warm woods, and simplified hardware balance artisan copper texture with the clean trapezoidal architecture.
Other Kitchen Styles
- Spanish Colonial
- Rustic Contemporary
- Mediterranean Transitional
Range Hood FAQ
A: Its round-hammered trapezoid body combines broad uninterrupted copper planes with a deep extended apron and rectangular crown without decorative straps or contrasting metals.
A: No. The canopy remains uninterrupted by vertical straps, allowing the round-hammered texture, sloping geometry, deep apron, and crown molding to define the design.
A: Round hammering creates softer, shallow impressions that gently scatter reflected light without overpowering the clean trapezoidal shape or producing a heavily distressed appearance.
A: Its substantial depth creates a strong horizontal foundation beneath the canopy. Unlike a narrow trim ledge, the apron becomes an important part of the hood's architecture.
A: Yes. Wall and island versions are available. Island installation requires appropriate ceiling support and advance coordination of mounting height, electrical service, ducting, and ventilation equipment.
A: Yes. Internal inserts up to 1,260 CFM and external blower systems up to 1,500 CFM can be accommodated when complete technical specifications are supplied before production.
Customize Your Hood
Choose the required width, height, copper finish, wall or island construction, and ventilation preparation. The round-hammered trapezoid canopy, deep extended apron, rectangular crown, and uninterrupted front remain the defining elements. Configure the enclosure around your cooking surface, cabinetry, ceiling conditions, and selected ventilation equipment.
Related Resources
- Trapezoid Copper Hood Guide
- Copper Hammering Techniques
- Copper Patina Finish Options
- Copper Range Hood Sizes
- Heritage Copper Hood Kitchens
Care & Maintenance
Clean the copper with warm water, mild soap, and a soft nonabrasive cloth, then dry promptly. Avoid acidic cleaners, bleach, steel wool, abrasive pads, and aggressive metal polishes. Pay particular attention to apron and crown edges where cooking residue can collect. Read the copper range hood cleaning and care guide for detailed maintenance information.
Installation
Wall installations require secure structural framing, while island configurations need suitable overhead support. Confirm mounting height, dimensions, insert opening, electrical service, and duct route before fabrication. Review the metal range hood installation guide with your contractor during project planning.
Shipping & Returns
Each made-to-order copper hood is securely crated for protected transportation. Review current delivery procedures, freight inspection requirements, custom-order conditions, and applicable return terms on the Shipping & Returns page before ordering.
Warranty
The handcrafted copper enclosure is covered according to applicable Rustica House warranty terms. Buyer-supplied ventilation equipment remains subject to its manufacturer's coverage. Review the complete Rustica House Warranty for coverage details, exclusions, and limitations.
Disclaimer: Handmade dimensions, seams, hammer impressions, edge work, apron and crown details, and patina tones may vary slightly. These variations are expected characteristics of handcrafted copper and are not manufacturing defects. Lifestyle images provide design inspiration and may show optional configurations, finishes, or accessories not included with the product. All product images © Rustica House, unauthorized use is prohibited.
