Product Description

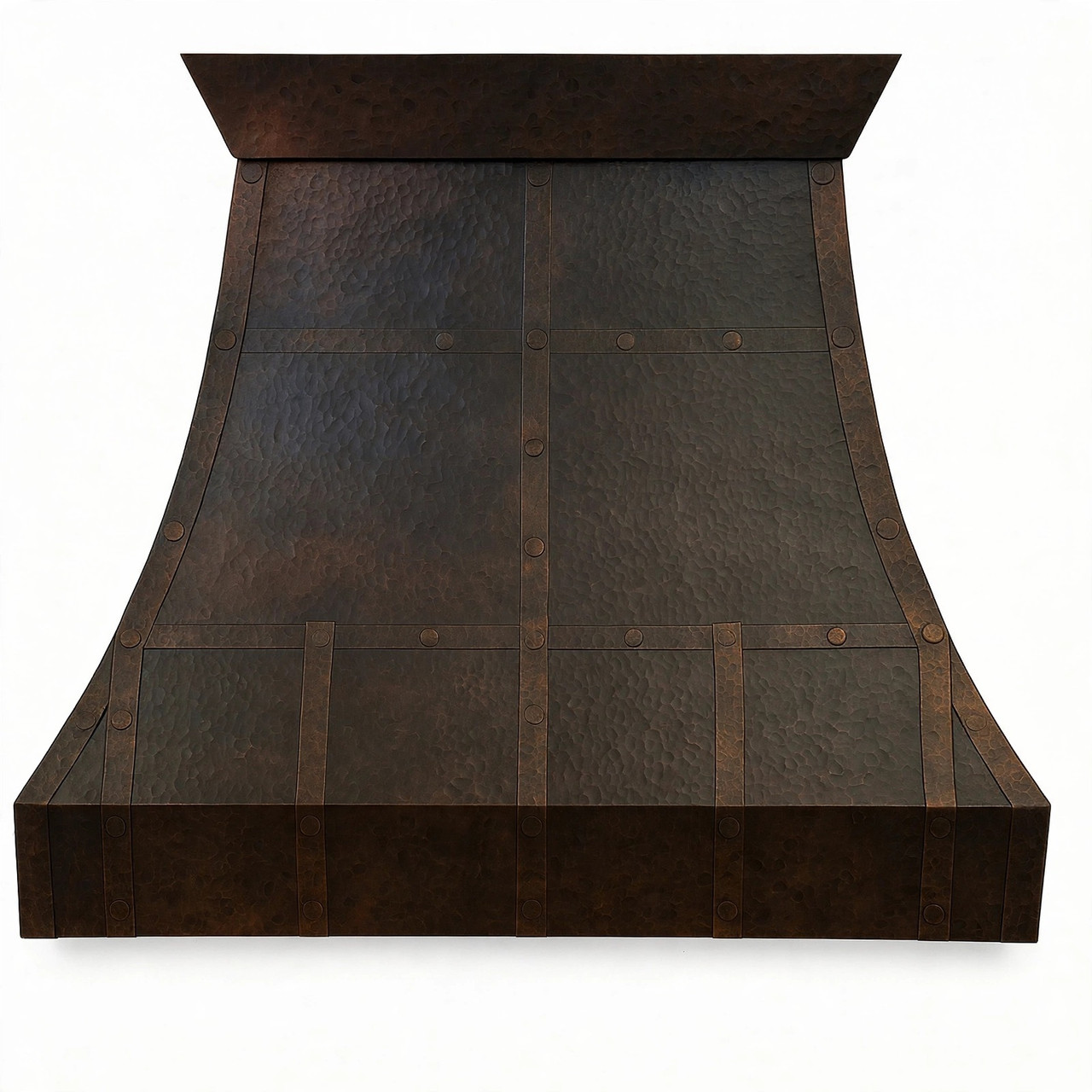

The riveted bell copper range hood combines a deeply concave canopy, framed copper panels, raised straps, exposed round rivets, and a substantial box apron. Handcrafted from 16-gauge copper, its symmetrical bell silhouette narrows through the center before opening toward the cooking surface beneath a projecting crown. The design features hand-hammered texture under a dark oil-rubbed bronze patina, with amber highlights visible along raised straps, rivets, folds, and edges. Widths range from 28 to 78 inches, heights from 24 to 72 inches, and the standard depth is 24 inches. This wall-mounted hood can be prepared for compatible internal inserts or external blower systems. Learn more in the riveted bell copper hood guide. Request a custom quote for this handcrafted copper focal point today.
Product Summary
- Material: 16-gauge handcrafted copper
- Shape: concave bell canopy
- Finish: oil-rubbed bronze patina
- Texture: hand-hammered copper
- Widths: 28–78 inches
- Height: 24–72 inches
- Mount: wall installation
- Ventilation: inserts to 1,260 CFM
- Lead time: about 8 weeks
- Coverage: free delivery; 12-month warranty
Riveted bell hood design

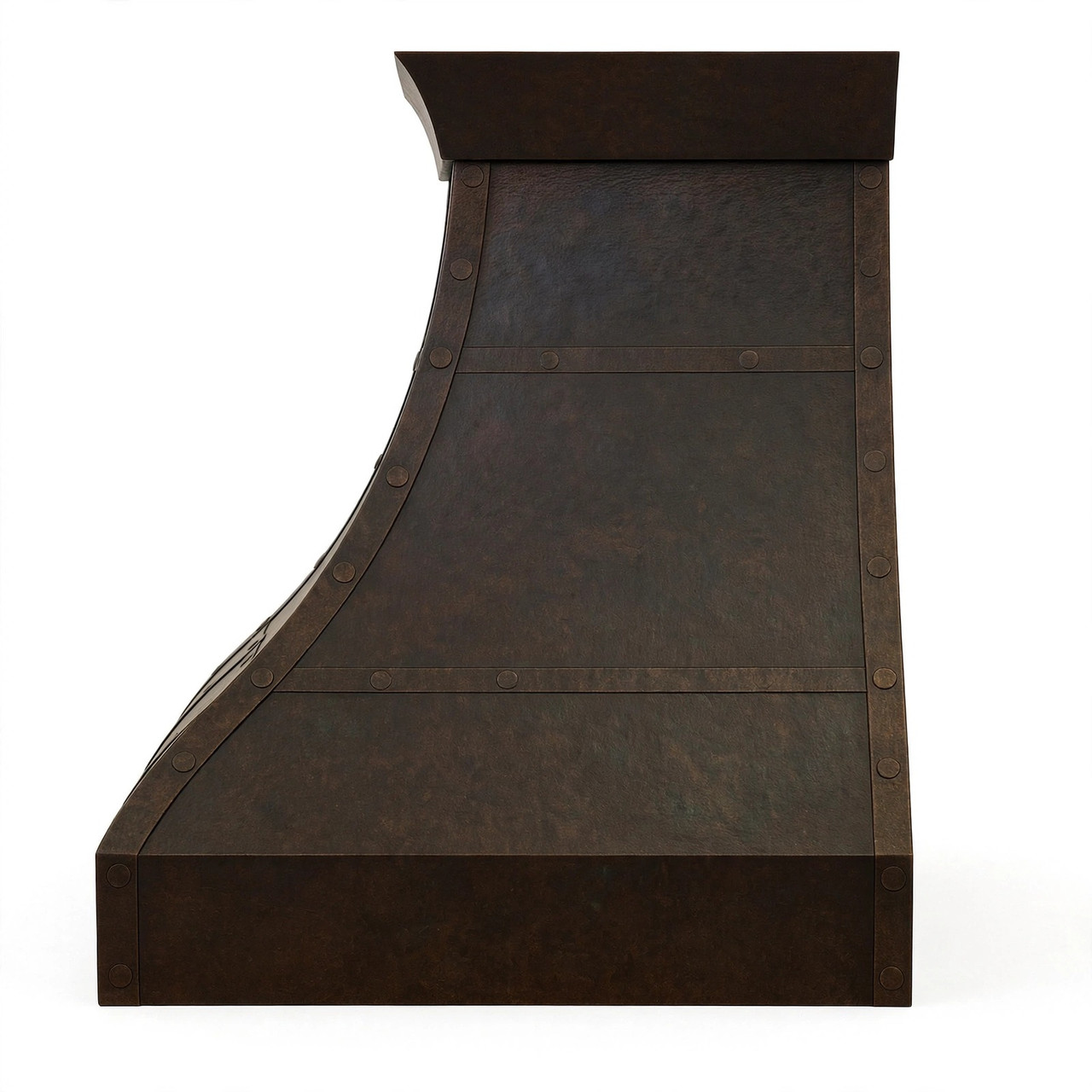

The canopy narrows beneath the crown before sweeping outward toward the broad lower capture area. Its concave side profile creates vertical movement without forming a fully rounded dome, while sharp lower corners and a deep rectangular apron give the softer curve a strong architectural foundation. Raised vertical and horizontal copper straps divide the body into framed panel fields, and large round rivets continue along the bands, intersections, apron, and visible edges. Instead of hiding every connection, this hammered copper range hood with rivets makes its metalwork part of the design. The deep box apron provides space for compatible filters, lights, controls, and insert components, while the projecting crown creates a clean upper transition. The riveted panel construction draws from traditional European and Spanish Colonial metalwork while remaining adaptable to contemporary kitchens.
Finish & craftsmanship
The featured oil rubbed bronze copper range hood uses a hand-applied patina that produces deep brown, charcoal, and near-black tones. Warmer copper and amber highlights may remain visible on raised straps, rivet heads, folds, and crown edges, creating the appearance of aged bronze while preserving copper as the underlying material. Each hood is shaped, hammered, fitted, joined, and finished by hand in Santa Clara del Cobre, Michoacán. Patina settles differently across panels, seams, rivets, corners, and raised bands. Variations in hammering, strap alignment, fastener spacing, seam placement, and color movement are expected characteristics of artisan production.
Customization options
Buyers may adjust the width, total height, bell flare, crown projection, apron height, strap spacing, rivet pattern, and panel proportions. Smooth or hammered copper may be selected with available artisan patinas or a hand-polished finish. Final dimensions, decorative details, mounting requirements, and ventilation preparation are reviewed before fabrication. Insert specifications should be submitted before production drawings are approved, allowing buyers to confirm the canopy proportions, apron size, crown shape, strap layout, rivet placement, duct route, and internal clearances.
Insert & ventilation planning
This handcrafted product is an insert-ready copper shell rather than a universal ventilation appliance. An optional 200 CFM insert is available for suitable light-duty projects. This range hood supports buyer-supplied inserts up to 1,260 CFM and external blower systems up to 1,500 CFM. Review the range hood insert guide before selecting equipment. Confirm the insert model, dimensions, duct diameter, outlet direction, controls, lighting, blower location, and service access before production.
Wall mounting and duct routing
The hood should be installed on a properly supported cooking wall. Wall blocking, backsplash thickness, attachment points, cooking clearance, nearby cabinet doors, duct direction, and electrical requirements should be reviewed by a qualified professional before final dimensions are approved.
Buyer planning table
| Planning | What to confirm | Why it matters |
| Hood width | Range width and coverage | Sets scale and capture area |
| Total height | Wall and ceiling clearance | Balances crown and canopy |
| Bell flare | Desired side curvature | Defines the silhouette |
| Apron height | Lower box proportion | Controls visual weight |
| Strap layout | Band width and spacing | Organizes panel fields |
| Rivet pattern | Size and alignment | Maintains visual rhythm |
| Ventilation | Insert and duct details | Guides internal preparation |
| Finish | Texture and patina | Sets color and reflection |
Product specifications
- Type: custom copper range hood
- Shape: concave bell canopy
- Design: framed panels and straps
- Rivets: exposed round fasteners
- Crown: projecting upper cap
- Apron: deep rectangular box
- Material: 16-gauge copper
- Shown texture: hand hammered
- Shown finish: oil-rubbed bronze
- Textures: smooth or hammered
- Finishes: artisan copper patinas
- Widths: 28–48 inches
- Widths: 54–78 inches
- Height: 24–72 inches
- Depth: 24 inches standard
- Custom sizes: available by review
- Mount: wall installation
- Venting: ducted or recirculating
- Supplied insert: optional 200 CFM
- Buyer insert: up to 1,260 CFM
- Built-in blower: up to 1,260 CFM
- External blower: up to 1,500 CFM
- Shell warranty: 12 months
- Insert coverage: 12-month replacement
- Lead time: about 8 weeks
- Delivery: free to U.S. mainland
- Care: mild soap and soft cloth
- Production: made to order
- Origin: Santa Clara del Cobre, Mexico
- SKU: CP28C3R37
Best kitchen styles

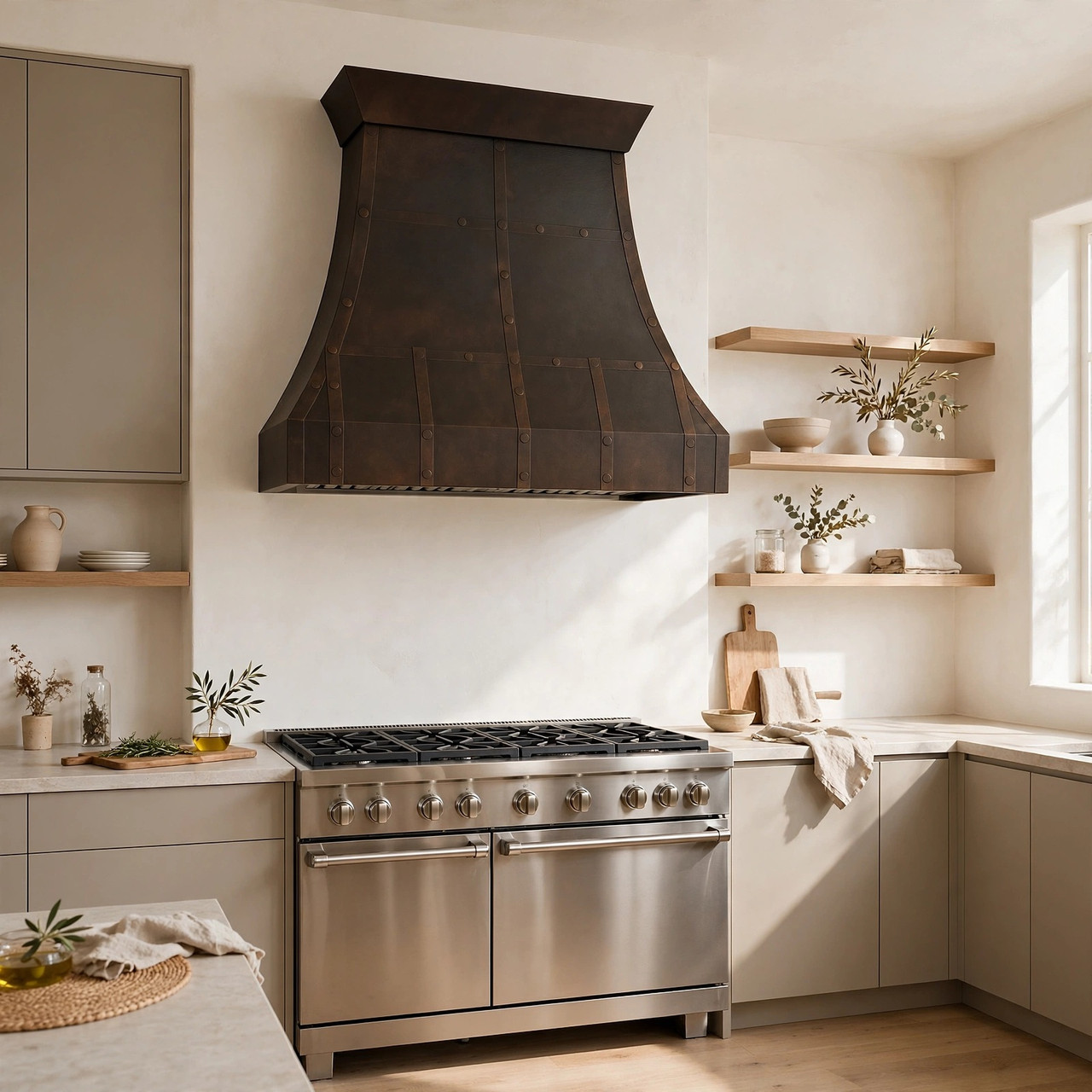

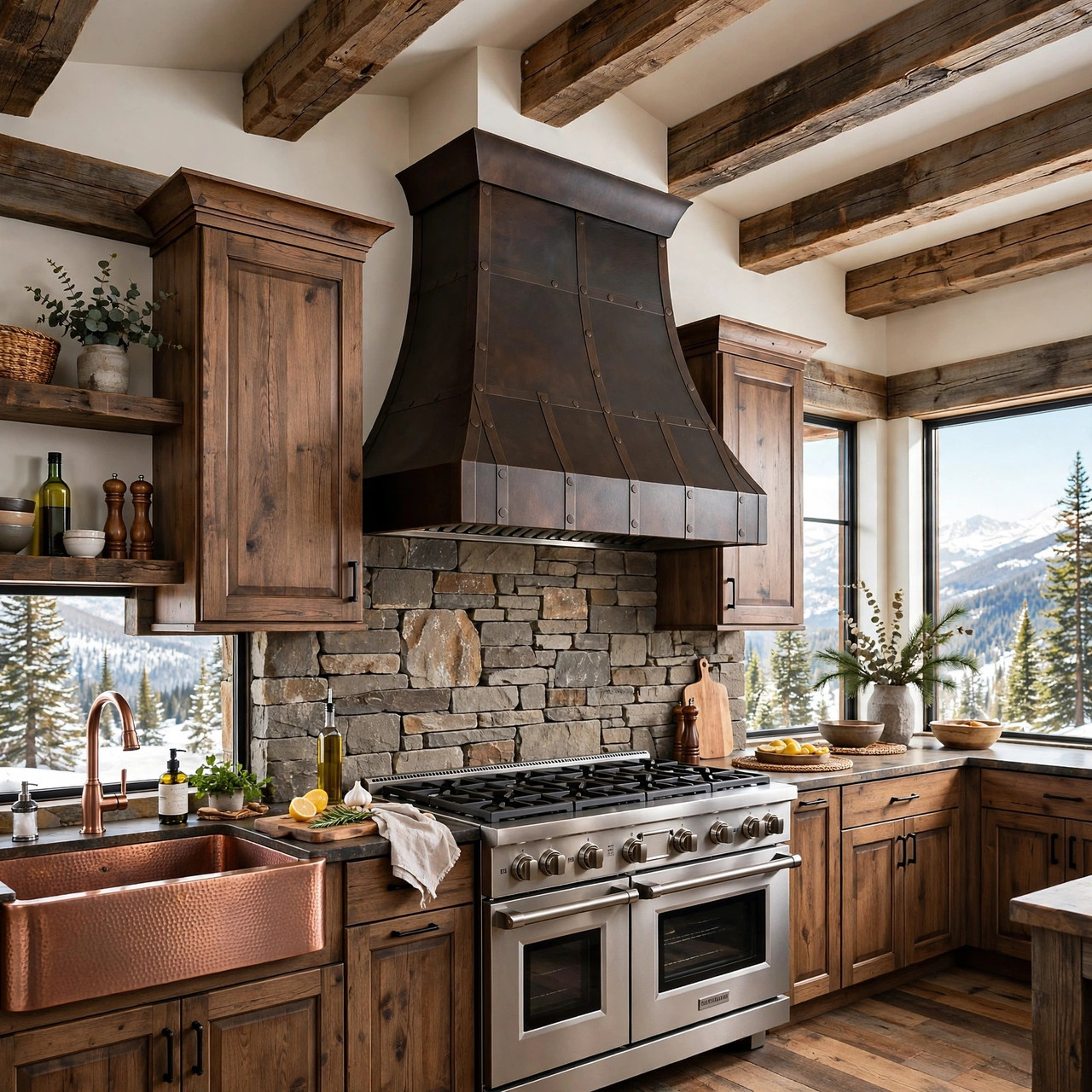

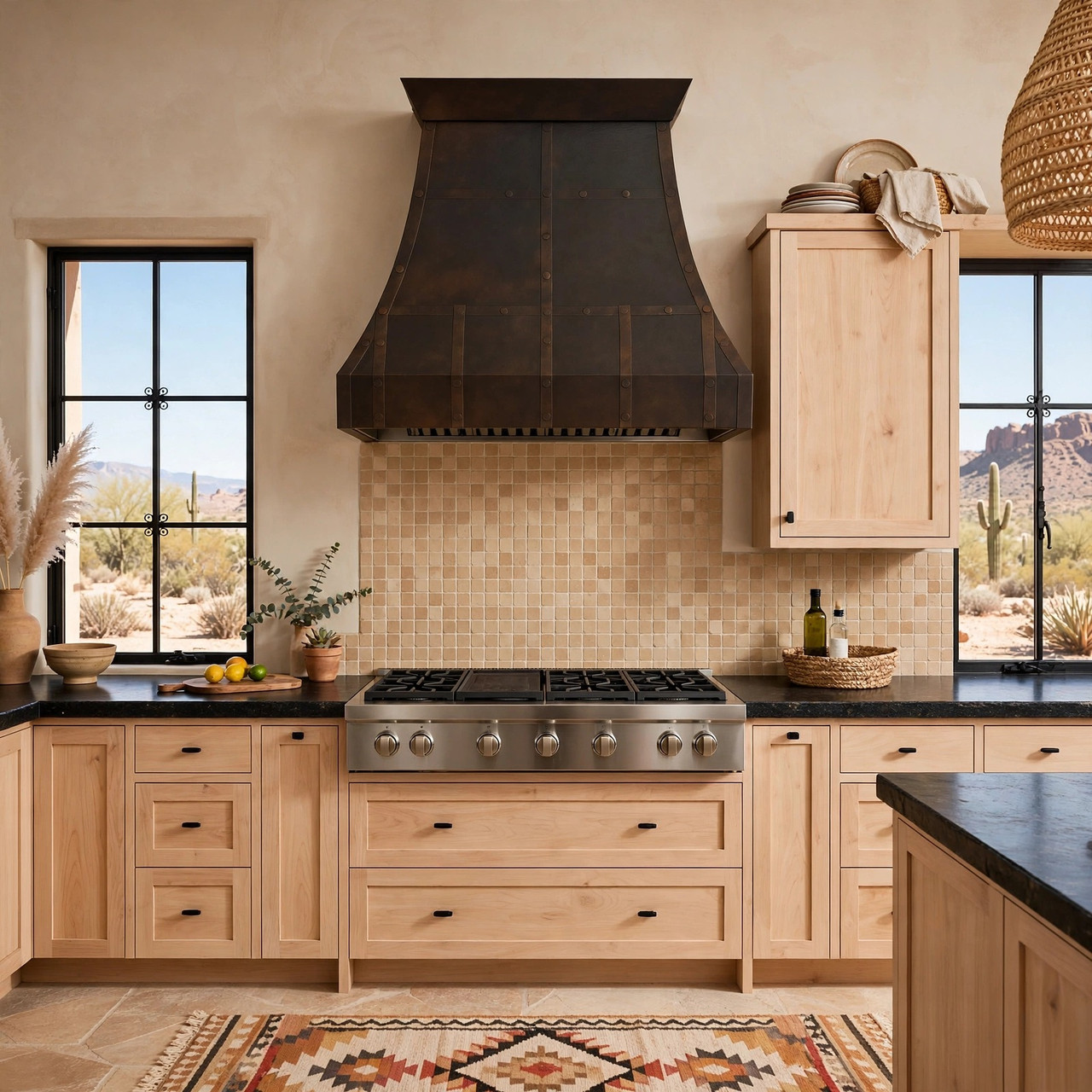

This dark copper hood with riveted straps works especially well in Santa Fe, mountain lodge, American Craftsman, and warm organic kitchens. Pair it with plaster walls, oak, walnut, handmade tile, ledgestone, terracotta, soapstone, or leathered granite. Black iron hardware, reclaimed beams, and restrained cabinetry support its forged character without competing with the bell silhouette.
FAQ - Riveted bell hood
A: It combines a concave bell profile, framed panels, raised straps, exposed rivets, a projecting crown, and a deep box apron.
A: The hood is made from 16-gauge copper. Oil-rubbed bronze describes the dark hand-applied finish.
A: Widths range from 28 to 78 inches, heights from 24 to 72 inches, and the standard depth is 24 inches.
A: No. Handmade patinas vary across hammered panels, straps, rivets, seams, edges, and corners.
A: Optional 200 CFM inserts, buyer inserts up to 1,260 CFM, and external blowers up to 1,500 CFM are supported.
A: Submit dimensions and ventilation details, review the quote and production drawings, then approve fabrication.
Customize your hood
Plan your custom bell copper range hood around the range width, wall height, cabinetry, backsplash, and ventilation system. Confirm the bell flare, crown projection, apron size, panel framing, rivet pattern, texture, and finish before fabrication. Request a custom quote from Rustica House today.
Related resources
- custom copper range hoods
- bell-shaped copper range hoods
- copper hood shape guide
- range hood insert guide
- copper patina options
- copper range hood FAQ
Shipping and warranty
Review production, insured freight delivery, inspection, and custom-order conditions before approving fabrication. The copper shell includes a 12-month warranty, and supplied insert components include 12-month replacement coverage. See the shipping and returns page and Rustica House warranty for current terms.
Disclaimer: Handmade dimensions, bell contours, panel proportions, hammer marks, finish tones, strap alignment, rivet spacing, seams, crown details, and apron profiles may vary slightly. These artisan differences are expected and are not manufacturing defects. Lifestyle images may show optional features. Product images may not be reproduced without written permission from Rustica House.
